VC nano 3D-Z 8/xx large Specifications
| Revision: | 1.0 |
|---|---|
| Date: | 2018-10-18 |
| Contact: | support@vision-comp.com |
| Copyright: | 1996-2018 Vision Components GmbH Ettlingen, Germany |
| Author: | VC Support, mailto:support@vision-comp.com |
1 Specifications
The following table shows the measurement specifications of all VC nano 3D-Z 8/xx large models.
| Model (focal distance [mm] / angle [deg]) | (8/24) large | (8/26) large | (8/28) large | (8/30) large | (8/32) large | (8/34) large | (8/36) large | (8/38) large | (8/40) large | (8/42) large | (8/44) large |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimal distance Z [mm] | 210 | 200 | 185 | 170 | 160 | 150 | 140 | 130 | 120 | 115 | 105 |
| Maximal distance Z [mm] | 740 | 620 | 535 | 470 | 415 | 375 | 340 | 310 | 280 | 260 | 240 |
| Min. horizontal field of view X [mm] | 140 | 135 | 130 | 125 | 120 | 115 | 115 | 110 | 105 | 105 | 100 |
| Max. horizontal field of view X [mm] | 455 | 385 | 335 | 295 | 265 | 240 | 220 | 205 | 190 | 175 | 165 |
| Resolution X Min [µm] | 120 | 110 | 110 | 100 | 100 | 100 | 90 | 90 | 90 | 90 | 80 |
| Resolution X Max [µm] | 360 | 310 | 270 | 240 | 210 | 190 | 180 | 160 | 150 | 140 | 140 |
| Resolution Z Min [µm] | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 10 | 10 |
| Resolution Z Max [µm] | 190 | 140 | 100 | 80 | 70 | 60 | 50 | 40 | 40 | 30 | 30 |
2 Graphical representation of the field of view

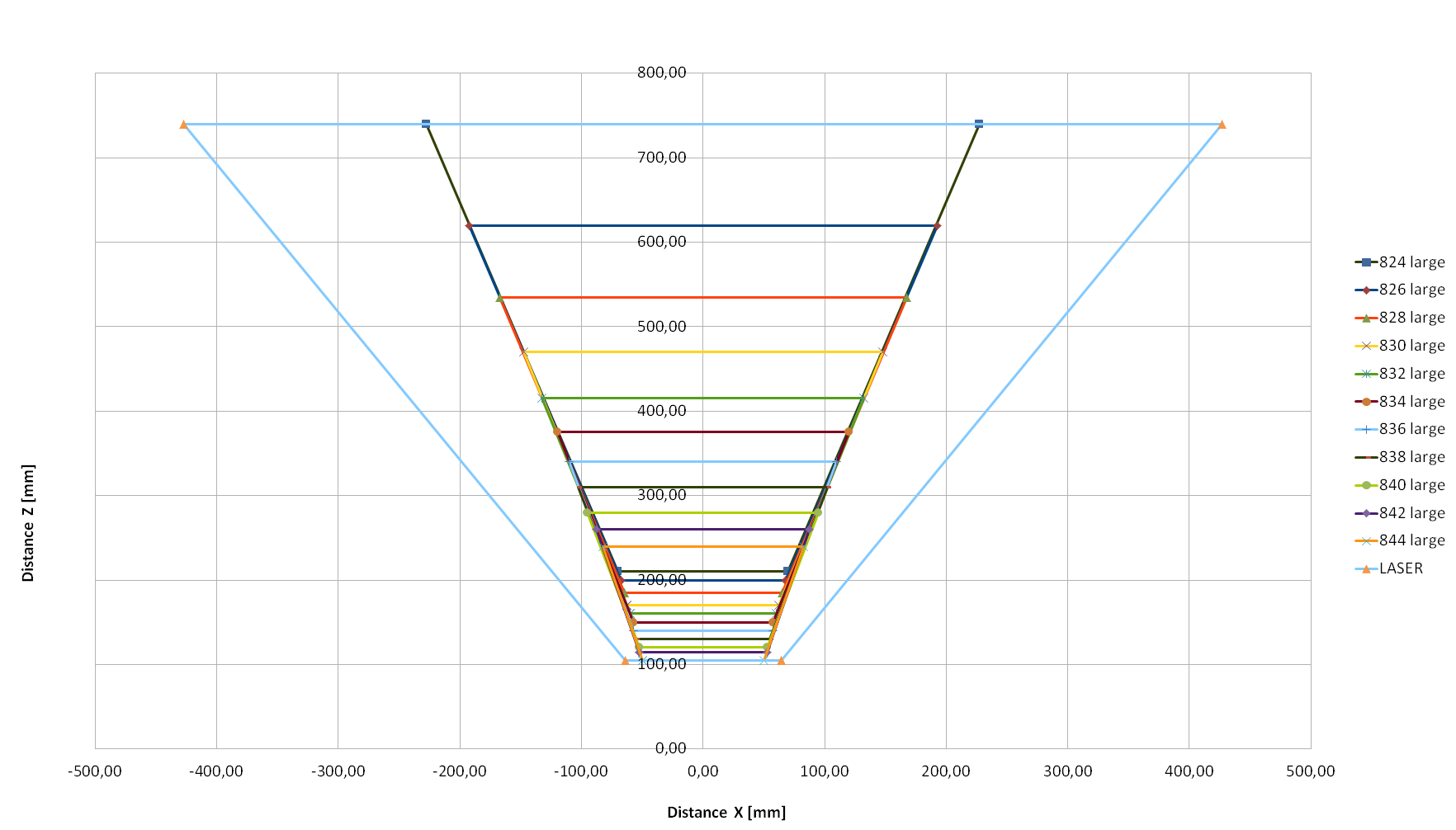

The following figure shows the field of view for all VC nano 3D-Z 8/xx large models.
Field of view VC nano 3D-Z 8/xx large
