VC nano 3D-Z 6/xx regular Specifications
| Revision: | 1.0 |
|---|---|
| Date: | 2018-10-18 |
| Contact: | support@vision-comp.com |
| Copyright: | 1996-2018 Vision Components GmbH Ettlingen, Germany |
| Author: | VC Support, mailto:support@vision-comp.com |
1 Specifications
The following table shows the measurement specifications of all VC nano 3D-Z 6/xx regular models.
| Model (focal distance [mm] / angle [deg]) | (6/30) regular | (6/32) regular | (6/34) regular | (6/36) regular | (6/38) regular | (6/40) regular | (6/42) regular |
|---|---|---|---|---|---|---|---|
| Minimal distance Z [mm] | 80 | 75 | 70 | 65 | 60 | 55 | 50 |
| Maximal distance Z [mm] | 325 | 280 | 245 | 220 | 195 | 175 | 160 |
| Min. horizontal field of view X [mm] | 80 | 80 | 75 | 75 | 70 | 70 | 70 |
| Max. horizontal field of view X [mm] | 265 | 230 | 205 | 185 | 165 | 150 | 140 |
| Resolution X Min [µm] | 70 | 70 | 60 | 60 | 60 | 60 | 60 |
| Resolution X Max [µm] | 210 | 190 | 170 | 150 | 140 | 120 | 120 |
| Resolution Z Min [µm] | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Resolution Z Max [µm] | 90 | 70 | 60 | 50 | 40 | 30 | 30 |
2 Graphical representation of the field of view

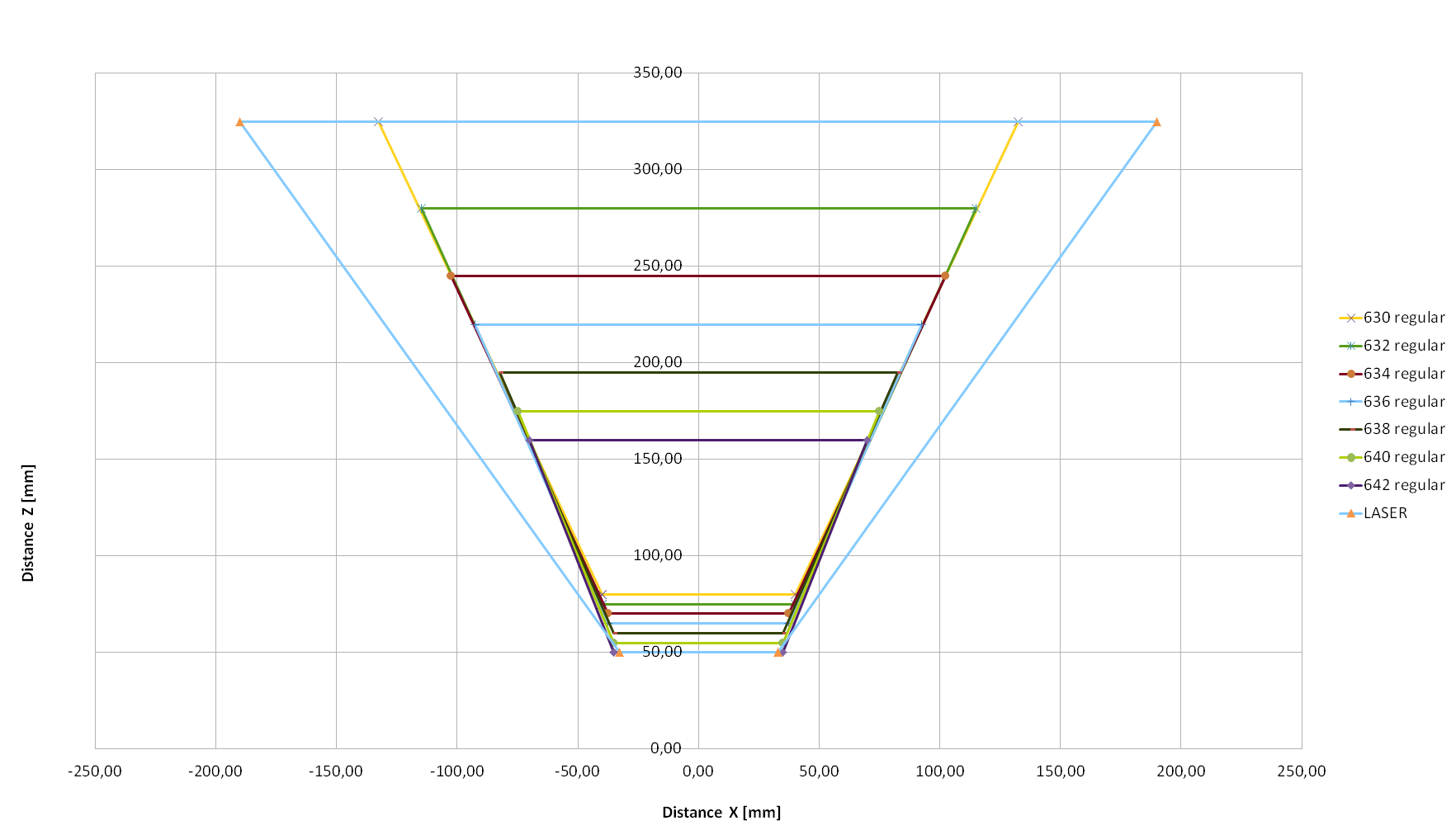

The following figure shows the field of view for all VC nano 3D-Z 6/xx regular models.
Field of view VC nano 3D-Z 6/xx regular
