VC nano 3D-Z 12/xx xlarge Specifications
| Revision: | 1.0 |
|---|---|
| Date: | 2018-10-18 |
| Contact: | support@vision-comp.com |
| Copyright: | 1996-2018 Vision Components GmbH Ettlingen, Germany |
| Author: | VC Support, mailto:support@vision-comp.com |
1 Specifications
The following table shows the measurement specifications of all VC nano 3D-Z 12/xx xlarge models.
| Model (focal distance [mm] / angle [deg]) | (12/24) xlarge | (12/26) xlarge | (12/28) xlarge | (12/30) xlarge | (12/32) xlarge | (12/34) xlarge | (12/36) xlarge | (12/38) xlarge | (12/40) xlarge | (12/42) xlarge | (12/44) xlarge |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Minimal distance Z [mm] | 410 | 380 | 355 | 330 | 310 | 285 | 270 | 250 | 235 | 215 | 200 |
| Maximal distance Z [mm] | 875 | 765 | 680 | 615 | 555 | 505 | 460 | 425 | 390 | 365 | 335 |
| Min. horizontal field of view X [mm] | 175 | 165 | 160 | 150 | 145 | 140 | 135 | 130 | 125 | 120 | 120 |
| Max. horizontal field of view X [mm] | 365 | 320 | 290 | 260 | 240 | 220 | 205 | 195 | 180 | 170 | 165 |
| Resolution X Min [µm] | 140 | 140 | 130 | 120 | 120 | 110 | 110 | 110 | 100 | 100 | 100 |
| Resolution X Max [µm] | 290 | 260 | 230 | 210 | 190 | 180 | 170 | 160 | 150 | 140 | 130 |
| Resolution Z Min [µm] | 30 | 30 | 30 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Resolution Z Max [µm] | 110 | 90 | 70 | 60 | 50 | 50 | 40 | 40 | 30 | 30 | 30 |
2 Graphical representation of the field of view

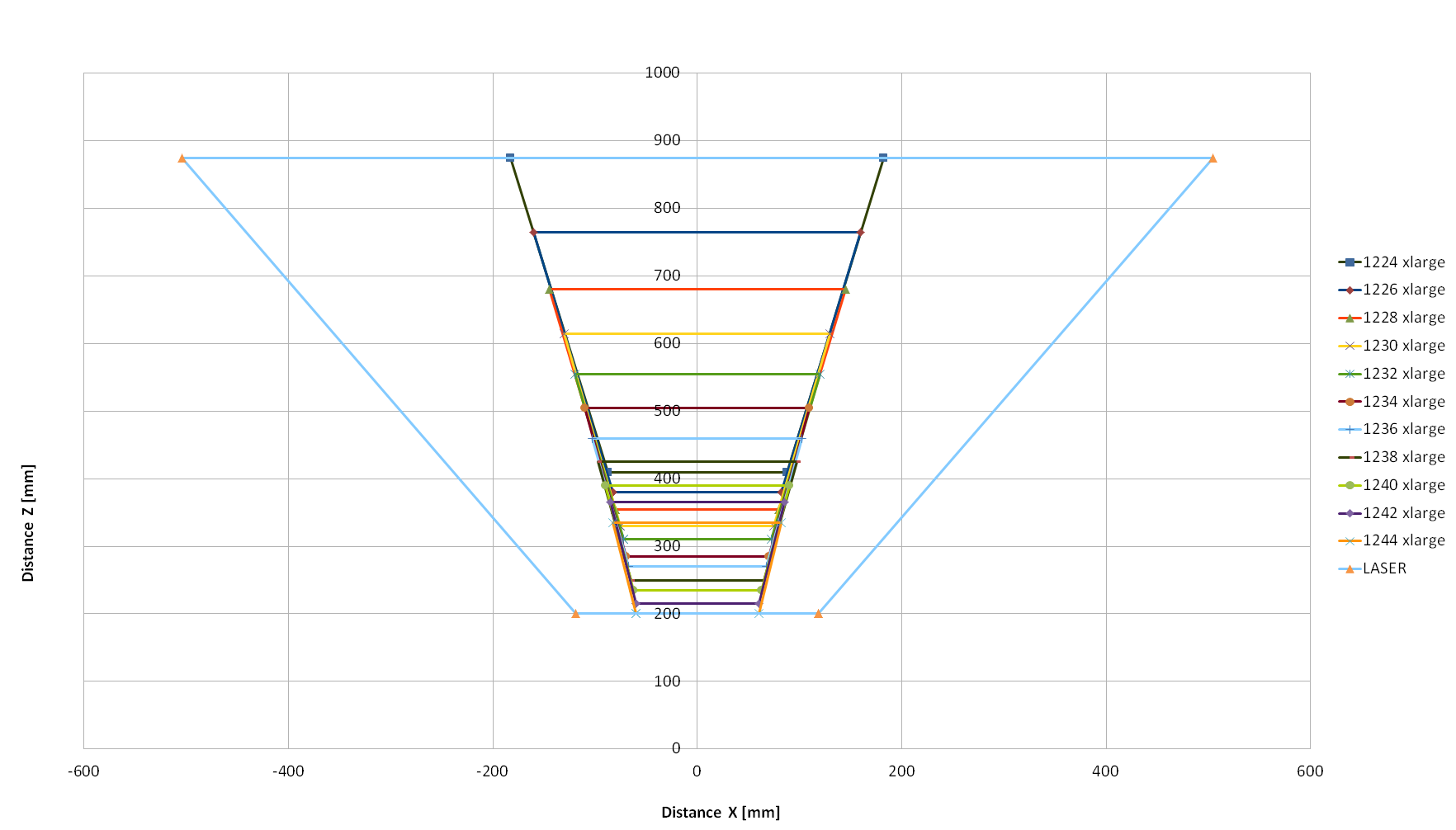

The following figure shows the field of view for all VC nano 3D-Z 12/xx xlarge models.
Field of view VC nano 3D-Z 12/xx xlarge
