VC nano 3D-Z 8/xx xlarge Specifications
| Revision: | 1.1 |
|---|---|
| Date: | 2021-06-23 |
| Contact: | support@vision-comp.com |
| Copyright: | 1996-2021 Vision Components GmbH Ettlingen, Germany |
| Author: | VC Support, mailto:support@vision-comp.com |
1 Specifications
The following table shows the measurement specifications of all VC nano 3D-Z 8/xx xlarge models.
| Model (focal distance [mm] / angle [deg]) | (8/26) xlarge | (8/28) xlarge | (8/30) xlarge | (8/32) xlarge | (8/34) xlarge | (8/36) xlarge | (8/38) xlarge | (8/40) xlarge | (8/42) xlarge | (8/44) xlarge |
|---|---|---|---|---|---|---|---|---|---|---|
| Minimal distance Z [mm] | 325 | 305 | 285 | 265 | 245 | 230 | 215 | 200 | 185 | 175 |
| Maximal distance Z [mm] | 1035 | 890 | 780 | 695 | 620 | 565 | 510 | 470 | 430 | 395 |
| Min. horizontal field of view X [mm] | 225 | 220 | 210 | 200 | 195 | 190 | 185 | 180 | 175 | 170 |
| Max. horizontal field of view X [mm] | 640 | 555 | 495 | 440 | 400 | 370 | 340 | 315 | 295 | 280 |
| Resolution X Min [µm] | 180 | 180 | 170 | 160 | 160 | 150 | 150 | 150 | 140 | 140 |
| Resolution X Max [µm] | 510 | 440 | 390 | 350 | 320 | 290 | 270 | 250 | 240 | 220 |
| Resolution Z Min [µm] | 30 | 30 | 30 | 30 | 30 | 20 | 20 | 20 | 20 | 20 |
| Resolution Z Max [µm] | 230 | 170 | 130 | 110 | 90 | 80 | 70 | 60 | 50 | 50 |
2 Graphical representation of the field of view
The following figure shows the field of view for all VC nano 3D-Z 8/xx xlarge models.

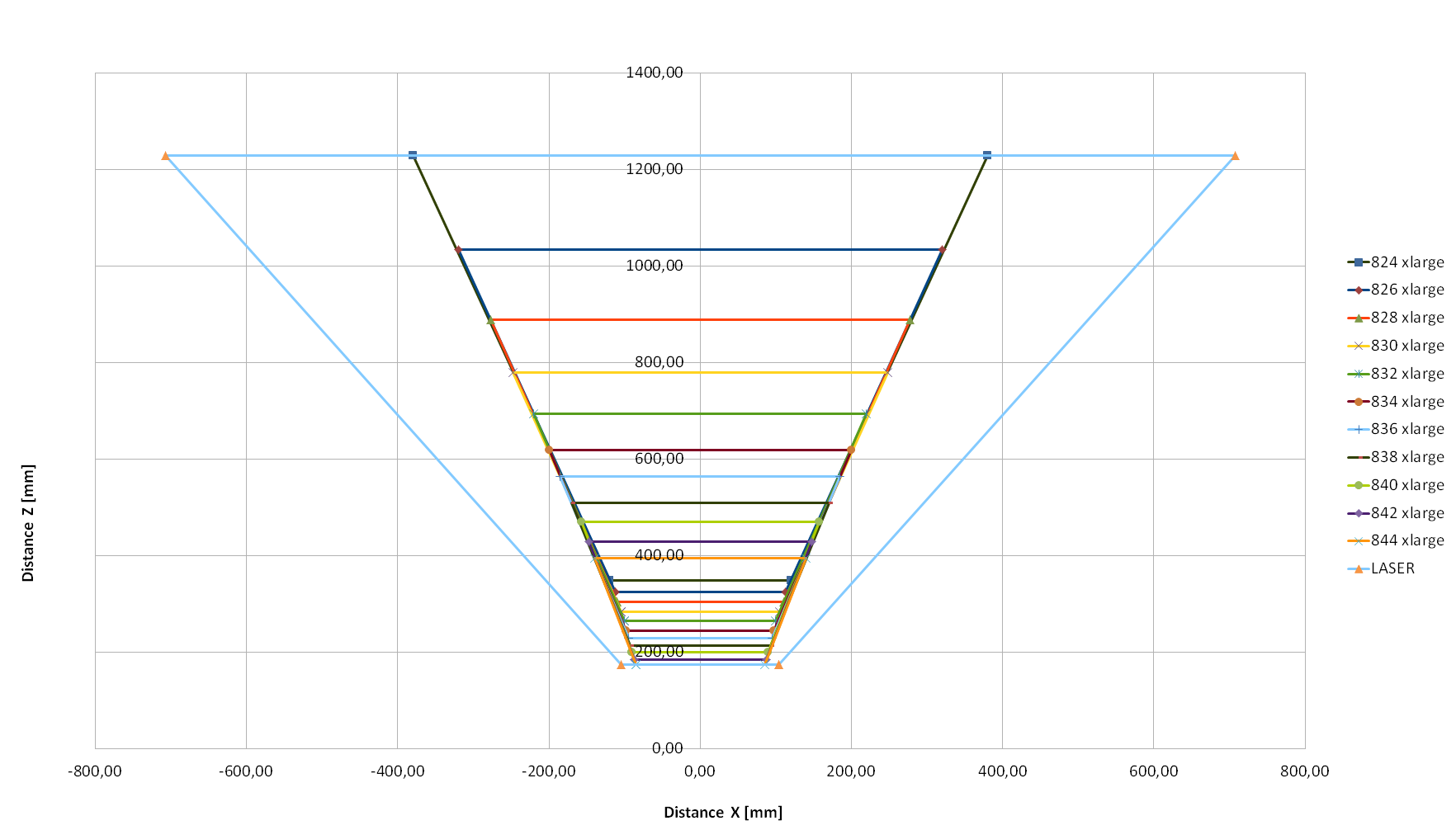

Field of view VC nano 3D-Z 8/xx xlarge
