VC nano 3D-Z 6/xx large Specifications
| Revision: | 1.1 |
|---|---|
| Date: | 2021-06-23 |
| Contact: | support@vision-comp.com |
| Copyright: | 1996-2021 Vision Components GmbH Ettlingen, Germany |
| Author: | VC Support, mailto:support@vision-comp.com |
1 Specifications
The following table shows the measurement specifications of all VC nano 3D-Z 6/xx large models.
| Model (focal distance [mm] / angle [deg]) | (6/26) large | (6/28) large | (6/38) large | (6/40) large | (6/42) large | (6/44) large |
|---|---|---|---|---|---|---|
| Minimal distance Z [mm] | 170 | 160 | 110 | 105 | 95 | 90 |
| Maximal distance Z [mm] | 925 | 750 | 375 | 340 | 310 | 285 |
| Min. horizontal field of view X [mm] | 170 | 160 | 140 | 135 | 135 | 130 |
| Max. horizontal field of view X [mm] | 755 | 615 | 325 | 295 | 275 | 255 |
| Resolution X Min [µm] | 140 | 130 | 110 | 110 | 110 | 110 |
| Resolution X Max [µm] | 600 | 490 | 260 | 240 | 220 | 200 |
| Resolution Z Min [µm] | 20 | 20 | 20 | 20 | 20 | 20 |
| Resolution Z Max [µm] | 380 | 250 | 70 | 60 | 50 | 50 |
2 Graphical representation of the field of view

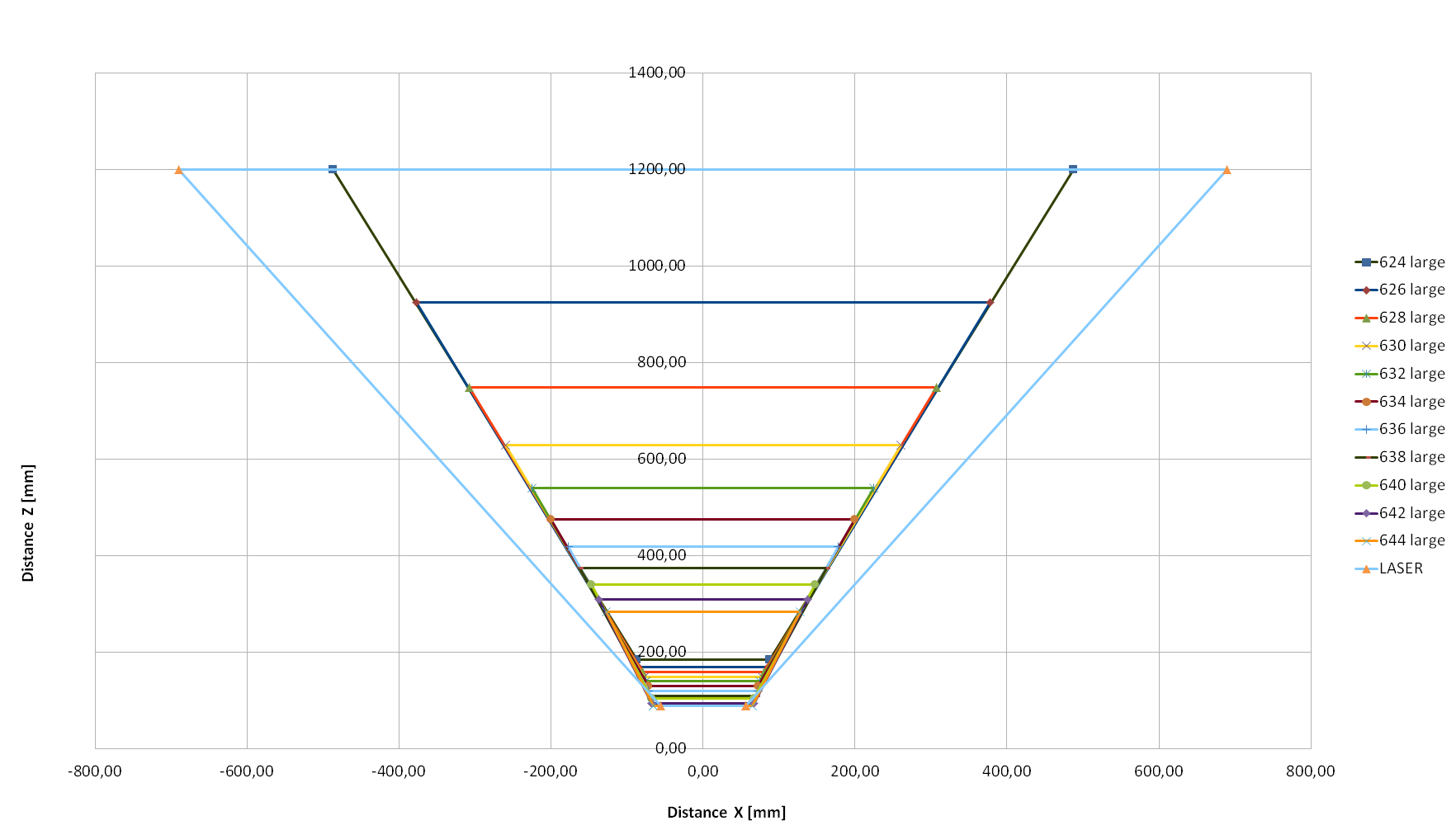

The following figure shows the field of view for all VC nano 3D-Z 6/xx large models.
Field of view VC nano 3D-Z 6/xx large
