VC nano 3D-Z 8/xx regular Specifications
| Revision: | 1.0 |
|---|---|
| Date: | 2018-10-18 |
| Contact: | support@vision-comp.com |
| Copyright: | 1996-2018 Vision Components GmbH Ettlingen, Germany |
| Author: | VC Support, mailto:support@vision-comp.com |
1 Specifications
The following table shows the measurement specifications of all VC nano 3D-Z 8/xx regular models.
| Model (focal distance [mm] / angle [deg]) | (8/30) regular | (8/32) regular | (8/34) regular | (8/36) regular | (8/38) regular | (8/40) regular | (8/42) regular | (8/44) regular |
|---|---|---|---|---|---|---|---|---|
| Minimal distance Z [mm] | 90 | 75 | 70 | 65 | 60 | 55 | 50 | 50 |
| Maximal distance Z [mm] | 240 | 215 | 195 | 175 | 160 | 145 | 135 | 125 |
| Min. horizontal field of view X [mm] | 65 | 60 | 60 | 60 | 55 | 55 | 55 | 50 |
| Max. horizontal field of view X [mm] | 150 | 135 | 120 | 110 | 105 | 95 | 90 | 85 |
| Resolution X Min [µm] | 60 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Resolution X Max [µm] | 120 | 110 | 100 | 90 | 90 | 80 | 80 | 70 |
| Resolution Z Min [µm] | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Resolution Z Max [µm] | 40 | 40 | 30 | 30 | 20 | 20 | 20 | 20 |
2 Graphical representation of the field of view
The following figure shows the field of view for all VC nano 3D-Z 8/xx regular models.

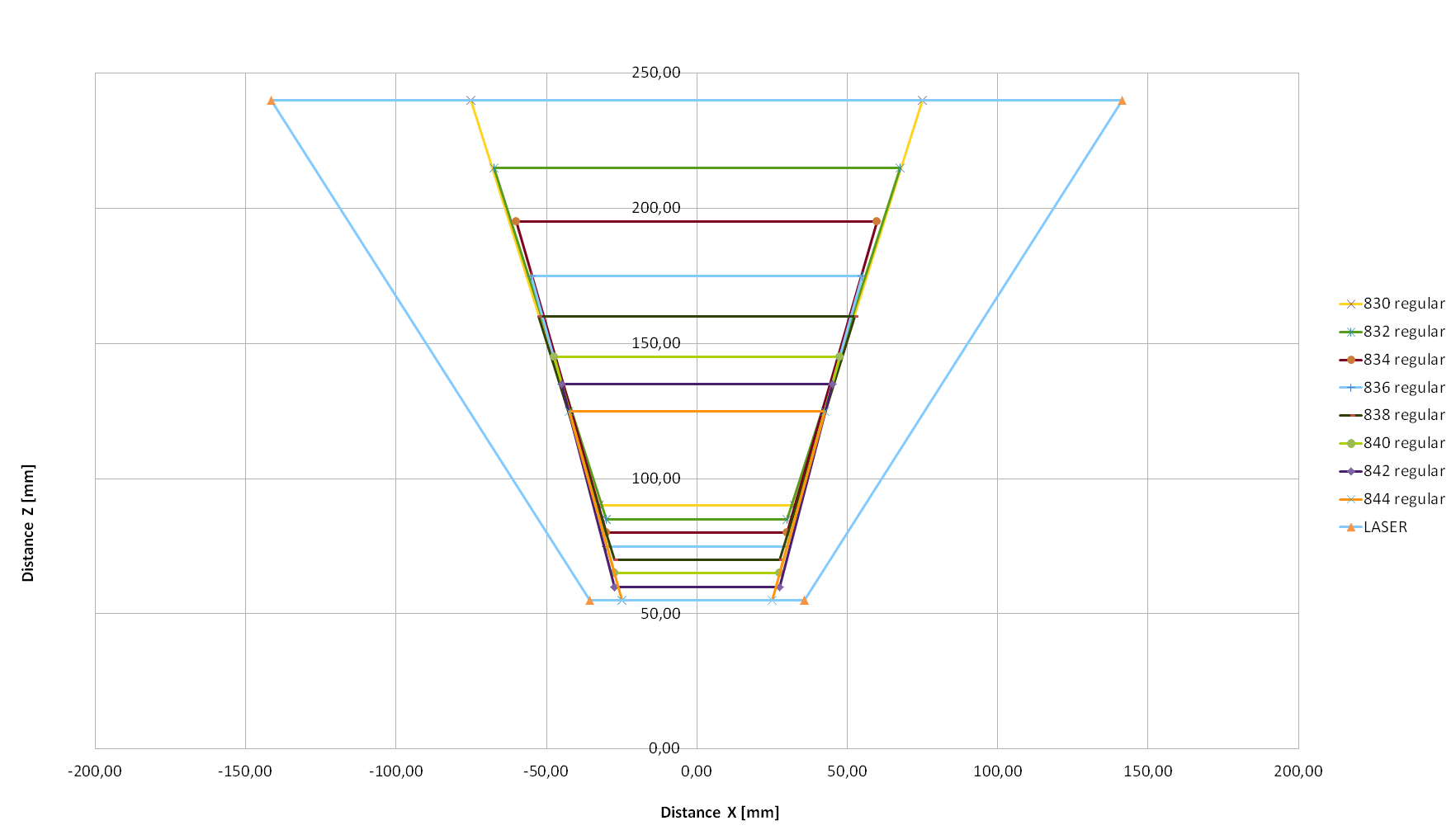

Field of view VC nano 3D-Z 8/xx regular
