RLC (Run Length Code) Processing

Functions
U16 *	rlcmk (image *a, I32 thr, U16 *rlc, I32 size)
	Creates Run Length Code from Pixel Images. More...
U16 *	rlcmk2 (image *src, I32 lowthr, I32 hithr, U16 *rlc, I32 size)
	Creates Run Length Code from Pixel Images Using 2 Thresholds. More...
U16 *	rlcmkv (image *src, I32 thr, U16 *rlc, I32 size)
	Creates Vertical Run Length Code from Pixel Images. More...
U16 *	rlcmkbit (image *a, I32 bit, U16 *rlc, I32 size)
	Creates Run Length Code of a Bitplane from a Pixel Image. More...
U16 *	rlcmk_sub (image *a, image *b, I32 thr, U16 *rlc, I32 size)
	Subtract 2 Images and Create Run Length Code from Difference Image. More...
U16 *	hysteresis_RLC (image *src, U16 *rlc, I32 size, I32 thr, I32 seed)
	Creates RLC Based on Canny Type Hysteresis Thresholding Binarization. More...
I32	rlcout (image *a, U16 *rlc, U32 dark, U32 bright)
	Outputs Run Length Code to a Pixel Image. More...
I32	rlcout_transparent (image *a, U16 *rlc, U8 plotBrightIff1, U8 color)
	Outputs Run Length Code to a Pixel Image (Transparent Mode). More...
I32	rlcout_pixellist (I32 *lstPx, I32 *lstPxCnt, I32 lstPxMaxCnt, U16 colIn, U16 *rlc)
	Outputs Run Length Code to a Pixel List. More...
I32	dispobj (image *a, U16 *rlc)
	Outputs Labelled Run Length Code with Objects in different Grey Values. More...

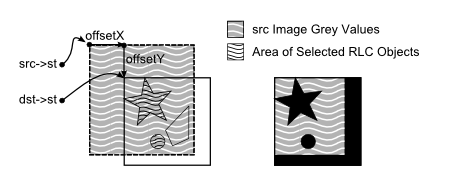

I32	rlc_mask_image (image *src, image *dst, U16 *rlc, I32 *objs, U8 color, I32 offsetX, I32 offsetY)
	Fills Regions of selected RLC Objects in Pixel Image with Color. More...
I32	vc_slc_out (image *img, U8 ch, U16 *rlc, U32 *lstColOfObj, I32 oneObjNrOrNegative, I32 oneObjCol, I32 oneObjColBg)
	Outputs SLC Object(s) to a channel of an image. More...
void	vc_slc_print (U16 *rlc, U16 *slc, I32 indent)
	Prints out SLC Objects aligned to RLC. More...
void	vc_slc_print_px (U16 *rlc, U16 *slc, I32 indent)
	Prints out SLC Objects Pixel by Pixel. More...
U16 *	rlc2 (U16 *rlca, U16 *rlcb, U16 *dest, U16 *(*func)())
	Logically Linking of Two Images in Run Length Code (RLC). More...
U16 *	rlc_inv (U16 *rlc)
	In-Place Inversion of RLC. More...
U16 *	rlc_move (U16 *src, U16 *dst, I32 mx, I32 my)
	Translate RLC. More...
U16 *	rlc_cutframe (U16 *src, U16 *dst, I32 dxDst, I32 dyDst, I32 mx, I32 my)
	Translate RLC and adjust image size to different RLC format. More...
U16 *	rlc90 (U16 *src, U16 *dst, I32 size)
	Rotate Run Length Code by 90 Degrees. More...
U16 *	rlc180 (U16 *src, U16 *dst)
	Rotate Run Length Code by 180 Degrees. More...
U16 *	rlc_mirrorH (U16 *src, U16 *dst)
	Mirror RLC horizontally. More...
U16 *	rlc_mirrorV (U16 *src, U16 *dst)
	Mirror RLC vertically. More...

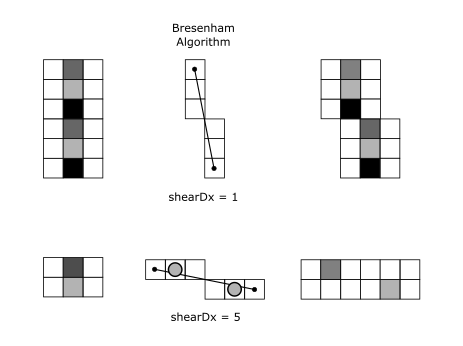

I32	rlc_shear_x (U16 *src, U16 *dst, I32 shearDx)
	Shears Run Length Code in Horizontal Direction. More...
U16 *	erxdi (U16 *src, U16 *dst, U16 *(*fc1)(), U16 *(*fc2)())
	Square shaped Erosion/Dilation of Run Length Code. More...
U16 *	erxdi2 (U16 *src, U16 *dst, U16 *(*fc1)(), U16 *(*fc2)())
	Diamond shaped Erosion/Dilation of Run Length Code (RLC). More...

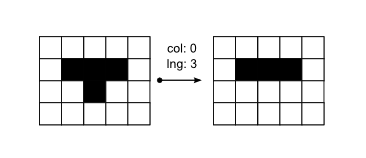

U16 *	rlc_mf (U16 *src, U16 *dst, I32 col, I32 lng)
	Horizontal 'median filter' for RLC. More...

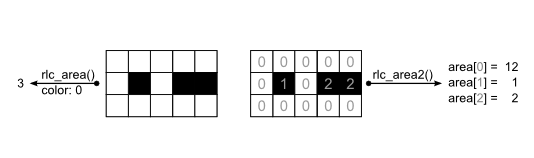

U32	rlc_area (U16 *rlc, I32 color)
	Count of Identically Coloured Pixels at Unlabelled Run Length Code (RLC). More...
U16 *	fread_rlc (char *path, U16 *rlc)
	Reads (unlabelled) RLC from File. More...
I32	fwrite_rlc (char *path, U16 *rlc)
	Writes (unlabelled) RLC to File. More...
U16 *	rlc_label_fast (U16 *rlc, U16 *rlcEnd, U16 *slc, I32 mode)
	Segment Run Length Code (Object Labelling) Sped up for Small Images. More...
U16 *	rlc_label (U16 *rlc, U16 *slc, I32 mode)
	Segment Run Length Code (Object Labelling). More...

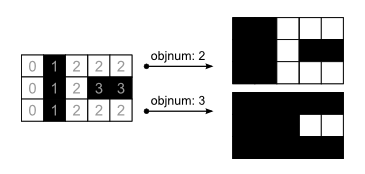

U16 *	rlc_cut (U16 *src, U16 *dst, I32 objnum)
	Extract an Object out of the Labelled RLC. More...
I32	rl_area2 (U16 *rlc, U32 *area, U32 n)
	Calculate the Object Areas in the Labelled RLC. More...
I32	rlc_qin (U16 *rlc, I32 QIN[], U32 n)
	Object Inclusion Property for Labelled RLC. More...

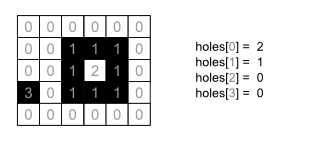

I32	rlc_nhls (U16 *rlc, U32 holes[], U32 n)
	Number of Holes Property for Labelled RLC. More...
I32	rlc_arf (U16 *src, U16 *dst, U32 min_area)
	RLC Object Area Filter for Small Objects (works on labelled RLC). More...
I32	rlc_arf2 (U16 *src, U16 *dst, I32 col, U32 min_area, U32 max_area)
	RLC Object Area Filter using Minimum and Maximum Area.. More...

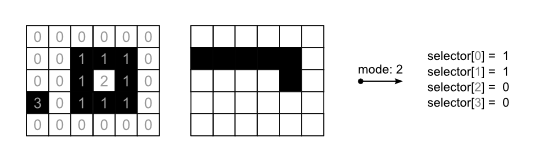

I32	rlc_select (U16 *rlc, U16 *rlc2, I32 selector[], U32 n, I32 mode)
	RLC Object Selection with Guide Image. More...
I32	rlc_select_by_polygon_simple (U16 *rlc, I32 *xyLst, U32 xyCnt, I32 *selector, U32 maxSelector)
	RLC Object Selection by Simple Polygon. More...
U16 *	rlc_delete (U16 *src, U16 *dst, I32 keep[])
	Delete RLC Objects using a Selection List. More...
I32	rlc_getobject (U16 *rlc, I32 x, I32 y)
	RLC object number retrieval using image coordinates within an input RLC. More...
I32	rlc_keep_object (U16 *src, U16 *dst, I32 x, I32 y)
	RLC Extract an object from labelled RLC using x,y-coordinates. More...
U16 *	rlcmk_seed (image *src, U16 *seed, U16 *rlc, I32 thresh, I32 size, I32 mode)
	Make RLC using seed RLC. More...
U16 *	rlcmk_seed2 (image *src, U16 *seed, U16 *rlc, I32 thr1, I32 thr2, I32 size, I32 mode)
	Make RLC using seed RLC using a high and a low threshold. More...
U16 *	rlcand_slc (U16 *rlca, U16 *slca, U16 *rlcb, U16 *rlcOut, U16 *slcOut, I32 *newObjNrOrNULL)
	Logically Anding of Two Images in Run Length Code, preserving SLC Objects. More...
U16 *	rlc_zoom (U16 *src, U16 *dst, I32 magX, I32 magY)
	Zoom up RLC. More...
I32	rlc_rect (U16 *rlc, U16 rlcDx, U16 rlcDy, I32 rlcMaxBytes, U16 x0, U16 y0, U16 x1, U16 y1, U16 col)
	Generates a RLC image with a Rectangle at it. More...
U16 *	rlc_drawline (U16 *rlc, U16 rlcDx, U16 rlcDy, float cx, float cy, float b, I32 col)
	Draws a Line in Normalized Floatingpoint Form into RLC. More...
U16 *	rlc_drawlinesegment (U16 *rlc, U16 rlcDx, U16 rlcDy, I32 x0In, I32 y0In, I32 x1In, I32 y1In, I32 col)
	Draws a Line into RLC. More...
I32	rlc_draw_polygon (U16 *rlcOut, U16 rlcDx, U16 rlcDy, I32 *pi32PxLst, U32 u32CornerCount, I32 col)
	Draws a Polyline Contour. More...
I32	rlc_fill_polygons_simple (U16 *rlc, U16 rlcDx, U16 rlcDy, U32 rlcMaxBytes, U32 lstCnt, I32 *xyLst, U32 *xyCnt)
I32	rlc_objectaverage (image *src, U16 *rlc, U32 *average, U32 n)
	RLC feature: grey value average of RLC objects in image variable. More...
I32	rlc_objectmaxval (U32 *lstObjMaxVal, image *src, U8 ch, U16 *rlc, U16 *slcOrNULL)
	Gets Maximum Value of each SLC Object. More...
U16 *	testrlc (U16 *rlc, I32 dx, I32 dy, I32 size)
	Generates a RLC Test Image (Chessboard). More...
I32	chkrlc (U16 *rlc)
	Checks for Errors in Labelled or Unlabelled RLC. More...
U16 *	parse_rlc (U16 *rlc)
	Returns the Next Available Address by Parsing (unlabelled) RLC. More...
void	vc_clc_print (U16 *rlc, U16 *clc, I32 indent)
	Prints out CLC aligned with RLC. More...
void	vc_clc_print_px (U16 *rlc, U16 *clc, I32 indent)
	Prints out CLC Color Pixel by Pixel. More...
U16 *	vc_clcmk (image *src, I32 thr, U16 *rlc, U16 *clc, U16 colCircularMax, U16 colBg, I32 fastModeIff1, I32 rlcMaxBytes)
	Color Run Length Code (CLC) generation. More...
U16 *	vc_clc_label (U16 *rlc, U16 *rlcEnd, U16 *clc, U16 *slc, I32 mode)
	Segment Color Length Code (Object Labelling). More...
I32	vc_cyclic_colrange (U16 *colRangeLen, U16 *colRangeSt, U8 *wrapsIff1, U16 objRef, U16 *colOfObj, I32 colCircularMax, I32 colBg, U32 *eqv_tbl, U16 objCnt)
	Get Color Range over Equivalent Objects. More...
I32	vc_clc_merge_objs_by_colTol (U16 *rlcOut, U16 *clcOut, U16 *slcOut, U16 *rlc, U16 *clc, U16 *slc, I32 maxColTol, I32 mergedMaxColTol)
	Merge Objects of CLC by Color. More...
I32	vc_clc_remove_objs_by_area (U16 *rlcOut, U16 *clcOut, U16 *slcOut, U16 *rlc, U16 *clc, U16 *slc, I32 minArea)
	Remove Objects of CLC by Area. More...
I32	vc_clc_to_rgb (image *imgRgb, U16 *rlc, U16 *clc)
	Writes CLC Image Content to an RGB image. More...
I32	fwrite_image_clc (char *path, U16 *rlc, U16 *clc)
	Writes CLC Image Content to a Color Bitmap File (BMP). More...

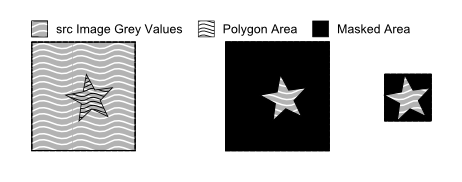

I32	mask_polygon (image *psImgIn, image *psImgOut, U8 color, U32 u32CornerCount, I32 *pi32PxLst, U8 u8OutputSizeToSelectionIff1)
	Masks All but a Polygon Shaped Image Region. More...
U16 *	rlc_fill (U16 *rlc, I32 dx, I32 dy, I32 color)
	Generates a Single Coloured RLC. More...

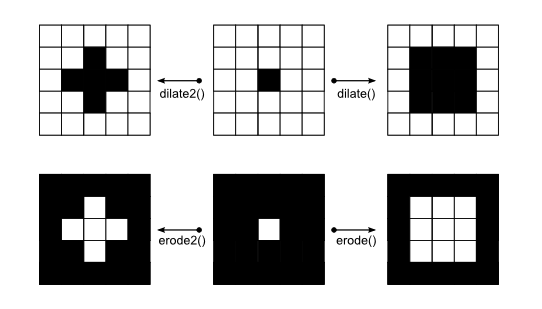

#define	erode(a, b)   erxdi(a, b, (U16 *(*)())rlc_xero, (U16 *(*)())rlc_orf)
	Erodes Run Length encoded Images using a Square Shape. More...
#define	dilate(a, b)   erxdi(a, b, (U16 *(*)())rlc_xdil, (U16 *(*)())rlc_andf)
	Dilates Run Length encoded Images using a Square Shape. More...
#define	erode2(a, b)   erxdi2(a, b, (U16 *(*)())rlc_xero, (U16 *(*)())rlc_orf)
	Erodes Run Length encoded Images using a Diamond Shape. More...
#define	dilate2(a, b)   erxdi2(a, b, (U16 *(*)())rlc_xdil, (U16 *(*)())rlc_andf)
	Dilates Run Length encoded Images using a Diamond Shape. More...
#define	rlcand(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_andf )
	Pixelwise AND of Two RLC Images (Macro). More...
#define	rlcor(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_orf )
	Pixelwise OR of Two RLC Images (Macro). More...
#define	rlcxor(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_xorf )
	Pixelwise XOR of Two RLC Images (Macro). More...
#define	rlcnand(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_nandf )
	Pixelwise NAND of Two RLC Images (Macro). More...
#define	rlcnor(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_norf )
	Pixelwise NOR of Two RLC Images (Macro). More...
#define	rlcequiv(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_equivf )
	Pixelwise Equivalence Test Value of Two RLC Images (Macro). More...
#define	rlcandnot(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_andnotf)
	Pixelwise AND NOT of Two RLC Images (Macro). More...
#define	rlcornot(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_ornotf)
	Pixelwise OR NOT of Two RLC Images (Macro). More...
#define	rlcnandnot(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_nandnotf)
	Pixelwise NAND NOT of Two RLC Images (Macro). More...
#define	rlcnornot(a, b, c)   rlc2(a, b, c, (U16 * (*)())rlc_nornotf)
	Pixelwise NOR NOT of Two RLC Images (Macro). More...
#define	rlc_copy(src, dst)   rlc_move(src, dst, 0, 0)
	Copies RLC Code. More...

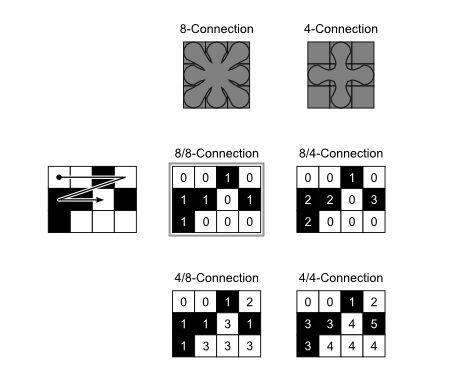

#define	label44(rlc, slc)   rlc_label(rlc, slc, 0) /* white: 4-connected, black: 4-connected */
	4/4-Type Segment Run Length Code (Object Labelling) (Macro). More...
#define	label88(rlc, slc)   rlc_label(rlc, slc, 1) /* white: 8-connected, black: 8-connected */
	8/8-Type Segment Run Length Code (Object Labelling) (Macro). More...
#define	label84(rlc, slc)   rlc_label(rlc, slc, 2) /* white: 8-connected, black: 4-connected */
	8/4-Type Segment Run Length Code (Object Labelling) (Macro). More...
#define	label48(rlc, slc)   rlc_label(rlc, slc, 3) /* white: 4-connected, black: 8-connected */
	4/8-Type Segment Run Length Code (Object Labelling) (Macro). More...

Detailed Description

Functions in this group operate on run length encoded image data, for example functions doing erosion/dilation, blob generation, feature extraction and more.

Note

For a description of the RLC format of the (U16*) rlc refer to Run Length encoded Images (RLC). For a description of the SLC format of the (U16*) slc refer to Segment Label Code (SLC).

Macro Definition Documentation

rlcand

#define rlcand	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_andf )

The pixelwise logical AND value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcand() is a macro which calls rlc2() with basic function rlc_andf() as an argument.

rlcor

#define rlcor	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_orf )

The pixelwise logical OR value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcor() is a macro which calls rlc2() with basic function rlc_orf() as an argument.

rlcxor

#define rlcxor	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_xorf )

The pixelwise logical XOR value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcxor() is a macro which calls rlc2() with basic function rlc_xorf() as an argument.

rlcnand

#define rlcnand	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_nandf )

The pixelwise logical NAND value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcnand() is a macro which calls rlc2() with basic function rlc_nandf() as an argument.

rlcnor

#define rlcnor	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_norf )

The pixelwise logical NOR value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcnor() is a macro which calls rlc2() with basic function rlc_norf() as an argument.

rlcequiv

#define rlcequiv	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_equivf )

The pixelwise logical equivalence test value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcequiv() is a macro which calls rlc2() with basic function rlc_equivf() as an argument.

rlcandnot

#define rlcandnot	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_andnotf)

The pixelwise logical AND NOT value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcandnot() is a macro which calls rlc2() with basic function rlc_andnotf() as an argument.

rlcornot

#define rlcornot	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_ornotf)

The pixelwise logical OR NOT value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcornot() is a macro which calls rlc2() with basic function rlc_ornotf() as an argument.

rlcnandnot

#define rlcnandnot	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_nandnotf)

The pixelwise logical NAND NOT value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcnandnot() is a macro which calls rlc2() with basic function rlc_nandnotf() as an argument.

rlcnornot

#define rlcnornot	(		a,
			b,
			c
	)		rlc2(a, b, c, (U16 * (*)())rlc_nornotf)

The pixelwise logical NOR NOT value of the two RLC images a and b is written to RLC image dest.

dest must be different from a and b.

rlcnornot() is a macro which calls rlc2() with basic function rlc_nornotf() as an argument.

erode

#define erode	(		a,
			b
	)		erxdi(a, b, (U16 *(*)())rlc_xero, (U16 *(*)())rlc_orf)

The macro erodes the image by one pixel using a square shape. Erosion means that all white areas in the RLC become one pixel wider in each direction, while all black areas are narrowed one pixel.

erode() is a macro which calls erxdi() with basic functions rlc_xero() and rlc_orf() as arguments.

See the documentation of the called function for further information.

dilate

#define dilate	(		a,
			b
	)		erxdi(a, b, (U16 *(*)())rlc_xdil, (U16 *(*)())rlc_andf)

The macro dilates the image by one pixel using a square shape. Dilation means that all black areas in the RLC become one pixel wider in each direction, while all white areas are narrowed one pixel.

dilate() is a macro which calls erxdi() with basic functions rlc_xdil() and rlc_andf() as arguments.

See the documentation of the called function for further information.

erode2

#define erode2	(		a,
			b
	)		erxdi2(a, b, (U16 *(*)())rlc_xero, (U16 *(*)())rlc_orf)

The macro erodes the image by one pixel using a diamond shape. Erosion means that all white areas in the RLC become one pixel wider in each direction, while all black areas are narrowed one pixel.

erode2() is a macro which calls erxdi2() with basic functions rlc_xero() and rlc_orf() as arguments.

See the documentation of the called function for further information.

dilate2

#define dilate2	(		a,
			b
	)		erxdi2(a, b, (U16 *(*)())rlc_xdil, (U16 *(*)())rlc_andf)

The macro dilates the image by one pixel using a diamond shape. Dilation means that all black areas in the RLC become one pixel wider in each direction, while all white areas are narrowed one pixel.

dilate2() is a macro which calls erxdi2() with basic functions rlc_xdil() and rlc_andf() as arguments.

See the documentation of the called function for further information.

label44

#define label44	(		rlc,
			slc
	)		rlc_label(rlc, slc, 0) /* white: 4-connected, black: 4-connected */

Segments the run length encoded image in rlc using the 4/4-connectedness model: White and black pixels connect to one object horizontally, vertically but not diagonally, Further information can be found at the main function rlc_label().

label44() is a macro which calls rlc_label() with mode=0 as an argument.

label88

#define label88	(		rlc,
			slc
	)		rlc_label(rlc, slc, 1) /* white: 8-connected, black: 8-connected */

Segments the run length encoded image in rlc using the 8/8-connectedness model: White and black pixels connect to one object horizontally, vertically and diagonally, Further information can be found at the main function rlc_label().

label88() is a macro which calls rlc_label() with mode=1 as an argument.

label84

#define label84	(		rlc,
			slc
	)		rlc_label(rlc, slc, 2) /* white: 8-connected, black: 4-connected */

Segments the run length encoded image in rlc using the 8/4-connectedness model: White pixels connect to one object horizontally, vertically and diagonally, Black pixels connect to one object horizontally, vertically but not diagonally. Further information can be found at the main function rlc_label().

label84() is a macro which calls rlc_label() with mode=2 as an argument.

label48

#define label48	(		rlc,
			slc
	)		rlc_label(rlc, slc, 3) /* white: 4-connected, black: 8-connected */

Segments the run length encoded image in rlc using the 4/8-connectedness model: White pixels connect to one object horizontally, vertically but not diagonally, Black pixels connect to one object horizontally, vertically and diagonally. Further information can be found at the main function rlc_label().

label48() is a macro which calls rlc_label() with mode=3 as an argument.

rlc_copy

#define rlc_copy	(		src,
			dst
	)		rlc_move(src, dst, 0, 0)

The macro copies RLC code. The destination RLC must have been allocated.

rlc_copy() is a macro which calls rlc_zoom().

Function Documentation

rlcmk()

U16* rlcmk	(	image *	a,
		I32	thr,
		U16 *	rlc,
		I32	size
	)

The function creates run length code (RLC) for the image variable a and stores it in memory. thr is the threshold value used for binarization, 0 ≤ thr < 256. A pixel with a gray scale g ≥ thr is interpreted as white, otherwise as black. rlc is the starting address at which the RLC is stored in memory, size is the number of words in memory available for the RLC. If there is not enough space here, creation of the RLC is aborted and the function returns NULL.

This function returns a pointer (U16 *) to the next memory address which is not yet written with RLC Data. The pointer is aligned to the next integer address. In case of error, the function returns NULL.

Parameters

a	Input Image.
thr	Binarization Threshold.
rlc	Pointer to RLC memory to be written by the function.
size	Maximum Size (in Bytes) allowed for Code.

Returns

Pointer past End of Output RLC (Aligned).

Memory Consumption

None.

See also

rlcout()

rlcmk2()

rlcmk2()

U16* rlcmk2	(	image *	src,
		I32	lowthr,
		I32	hithr,
		U16 *	rlc,
		I32	size
	)

The function creates run length code (RLC) for the image variable a and stores it in memory. lowthr and hithr are the low and high binarization thresholds, 0 ≤ lowthr < hithr ≤ 256. A pixel with a gray scale in between the 2 thresholds is interpreted as white, otherwise as black. Precisely, a pixel value belonging to the set [lowthr, hithr) is considered white. rlc is the starting address at which the RLC is stored in memory, size is the number of words in memory available for the RLC. If there is not enough space here, creation of the RLC is aborted and the function returns NULL.

This function returns a pointer (U16 *) to the next memory address which is not yet written with RLC Data. The pointer is aligned to the next integer address. In case of error, the function returns NULL.

if lowthr ≥ hithr, the function returns NULL

Parameters

src	Input Image.
lowthr	Low Binarization Threshold.
hithr	High Binarization Threshold.
rlc	Pointer to Memory to be written by Function.
size	Maximum Size (in Bytes) allowed for Code.

Returns

Pointer past End of Output RLC (Aligned).

Memory Consumption

None.

See also

rlcout().

rlcmkv()

U16* rlcmkv	(	image *	src,
		I32	thr,
		U16 *	rlc,
		I32	size
	)

This function generates vertical run length code from a given image. src->dx must be > 6 for highspeed RLC routine.

Parameters

src	Source Image.
thr	Binarization Threshold.
rlc	Pointer to RLC to be Written by Function.
size	Maximum Byte Count allowed for rlc.

Memory Consumption

(2 * src->dx * src->dy + 10 * src->dx + 8) Bytes of Heap Memory.

Return values

NULL	if src->dx < 6.
NULL	if size is too low.
NULL	if Memory Allocation Fails.
Address	Pointer Past End of Output RLC (Aligned).

rlcmkbit()

U16* rlcmkbit	(	image *	a,
		I32	bit,
		U16 *	rlc,
		I32	size
	)

The function creates run length code for the image variable a and stores it in memory. bit indicates the bitplane for which the run length code is created. It should be a power of two. A pixel with the corresponding bit being set (pixel & bit ≠ 0) is interpreted as white, otherwise as black. rlc is the starting address at which the RLC is stored in memory, size is the number of words in memory available for the RLC. If there is not enough space here, creation of the RLC is aborted and the function returns NULL. This function returns a pointer (U16 *) to the next memory address which is not yet written with RLC. The pointer is aligned to the next integer address. In case of error, it returns NULL.

Parameters

a	Input Image.
bit	Bit Value for Bitplane Comparison 1 if White.
rlc	Pointer to RLC to be Written by Function.
size	Maximum Size (in Bytes) Allowed for Code.

Memory Consumption

None.

See also

rlcmk(), rlcout().

Return values

NULL	if size is too low.
Address	Pointer past end of output RLC (aligned).

rlcmk_sub()

U16* rlcmk_sub	(	image *	a,
		image *	b,
		I32	thr,
		U16 *	rlc,
		I32	size
	)

The function first subtracts 2 images using Absolute Difference (function FL_sub2f). The run length code (RLC) for the difference image is created and stored in memory. thr is the threshold value used for binarization, 0 ≤ thr < 256. A pixel with a gray scale g ≥ thr is interpreted as white, otherwise as black. rlc is the starting address at which the RLC is stored in memory, size is the number of words in memory available for the RLC. If there is not enough space here, creation of the RLC is aborted and the function returns NULL.

This function returns a pointer (U16 *) to the next memory address which is not yet written with RLC Data. The pointer is aligned to the next integer address. In case of error, the function returns NULL.

Parameters

a,b	Input Images.
thr	Binarization Threshold.
rlc	Pointer to RLC memory to be written by the function.
size	Maximum Size (in Bytes) allowed for Code.

Returns

Pointer past End of Output RLC (Aligned).

Memory Consumption

None.

See also

rlcmk()

rlcmk2()

rlcout()

hysteresis_RLC()

U16* hysteresis_RLC	(	image *	src,
		U16 *	rlc,
		I32	rlclength,
		I32	thr,
		I32	seed
	)

This function performs a Canny type hysteresis thresholding. The seed threshold is used to generate seed points which are then used to select connected areas of the threshold thr which qualify for output. The selection is done using the function rlc_select() to select objects in a selection table. All other objects that are not selected are deleted from the low-threshold-RLC afterwards using the function rlc_delete(). If seed is higher than thr, the function does Canny-type hyteresis thresholding for bright objects with even brighter seed points. If seed is lower than thr, the function switches to thresholding for dark objects with even darker seed points.

Parameters

src	Source Image.
rlc	RLC Output.
rlclength	Maximum Count of Words for rlc.
thr	Object Threshold used for Object Based Extension.
seed	Seed Threshold.

Returns

Pointer to the Next Available RLC Location.

rlcout()

I32 rlcout	(	image *	a,
		U16 *	rlc,
		U32	dark,
		U32	bright
	)

The function converts a run length code image into a gray image. This is mostly used to display the run length code on the screen. However, this function can also be used to prepare for image processing operations which are not possible directly at the run length code, or which would be difficult in it. The image variable a provides the start address and the pitch for the output. The function immediately aborts with error code ERR_FORMAT if the image format (dx, dy) implicitly contained in the run length code does not agree with a->dx and a->dy of the image variable. rlc is the start address of the run length code in memory, dark is the gray scale for the black areas of the RLC, bright is the gray scale for the white areas - here, values between 0 and 255 are possible.

Parameters

a	Input Image.
rlc	Pointer to RLC (Labelled or Unlabelled).
dark	Pixel value for RLC Color "0".
bright	Pixel value for RLC Color "-1".

Memory Consumption

None.

See also

rlcmk().

Return values

ERR_FORMAT	if RLC (dx, dy) differs from output image (dx, dy).
ERR_NONE	on Success.

rlcout_transparent()

I32 rlcout_transparent	(	image *	a,
		U16 *	rlc,
		U8	plotBrightIff1,
		U8	color
	)

The function converts a run length code image into a gray image. Contrary to the function rlcout(), the function rlcout_transparent() only plots bright or dark parts of the image as selected by plotBrightIff1 and leaves the rest transparent. Please make sure to initialize the input image a appropriately before calling the function. The function can be used to display the run length code on the screen or writing it to the overlay. This function can also be used to prepare for image processing operations which are not possible directly at the run length code, or which would be difficult in it. If used in this way, rlc provides a mask for the regions where rlcout_transparent() sets the pixels of image to a constant value (color).

The image variable a provides the start address and the pitch for the output. The function immediately aborts with error code ERR_FORMAT if the image format (dx, dy) implicitly contained in the run length code does not agree with a->dx and a->dy of the image variable. rlc is the start address of the run length code in memory, color is the grey value drawn at the regions selected by the parameter plotBrightIff1.

Parameters

a	Input Image.
rlc	Pointer to RLC (Labelled or Unlabelled).
plotBrightIff1	nothing is plotted at dark regions if 1, and vice versa.
color	pixel value for the color to plot

Memory Consumption

None.

See also

rlcout(), rlcmk().

Return values

ERR_FORMAT	if RLC (dx, dy) differs from output image (dx, dy).
ERR_NONE	on Success.

rlcout_pixellist()

I32 rlcout_pixellist	(	I32 *	lstPx,
		I32 *	lstPxCnt,
		I32	lstPxMaxCnt,
		U16	colIn,
		U16 *	rlc
	)

The function converts a run length code image into a pixellist. lstPx has 2 * lstPxMaxCnt I32 values, i.e. x[i] = lstPx[2*i+0] and y[i] = lstPx[2*i+1].

Parameters

lstPx	Output Pixel List (preallocated).
lstPxCnt	Pixel List elements written.
lstPxMaxCnt	Maximum allowed Pixel List elements.
colIn	pixel coordinates of this color are added to list.
rlc	Pointer to RLC (Labelled or Unlabelled).

Return values

ERR_OVERRUN

if lstPxMaxCnt is exceeded.

Memory Consumption

None.

See also

rlcout(), rlcmk().

dispobj()

I32 dispobj	(	image *	a,
		U16 *	rlc
	)

The function serves to output the labelled RLC for test purposes. The various objects contained in the labelled RLC are drawn with different gray scales. Otherwise, the output is basically equivalent to the function rlcout().

Parameters

a	Destination Pixel Image.
rlc	Labelled Source RLC.

Memory Consumption

None.

Return values

ERR_FORMAT	if RLC is Unlabelled.
ERR_FORMAT	if Object Number Overruns.
ERR_FORMAT	if Input RLC dx/y differs from Output Image dx/y.
ERR_NONE	on Success.

rlc_mask_image()

I32 rlc_mask_image	(	image *	src,
		image *	dst,
		U16 *	rlc,
		I32 *	objs,
		U8	color,
		I32	offsetX,
		I32	offsetY
	)

The function fills the dst image grey value of all objects selected by objs with the constant value color. All other pixel values remain unchanged. It is possible to add offsetX and offsetY to the coordinates of the destination image which results in a movement of the image. Pixels out of the scope of the original image will also be filled with color. The purpose of the function is the selection of the grey values only for a number of objects for which features need to be calculated e.g. the mean grey value of the object pixels. The content of the source image moves left (or up) in the destination image with raising offsetX (or offsetY).

Parameters

src	The Source Image of Type IMAGE_GREY.
dst	The Destination Image (may be equal to src).
rlc	The Segmented Run Length Code.
color	The Fill Color.
objs	Points to Object Selection List; Object Number is Array Index, a Value of 0 means "Object Unselected" i.e., the Grey Value is Unchanged.
offsetX,offsetY	src Coordinate of the Top-Left Point in dst Image.

Memory Consumption

None.

Return values

ERR_PARAM	if (RLC is not segmented) or (src.type != IMAGE_GREY) or (dst.type != IMAGE_GREY) or (src.dx != rlc dx) or (src.dy != rlc dy) or (offsetX not in [0, src->dx-1]) or (offsety not in [0, src->dy-1])
ERR_NONE	on Success.

vc_slc_out()

I32 vc_slc_out	(	image *	img,
		U8	ch,
		U16 *	rlc,
		U32 *	lstColOfObj,
		I32	oneObjNrOrNegative,
		I32	oneObjCol,
		I32	oneObjColBg
	)

This function outputs regions of SLC objects to a channel of an image.

Parameters

img	The Output image.
ch	The Output image channel to be written to.
rlc	The labelled RLC
lstColOfObj	An array with grey values used for and assigned over each object nr, may be NULL for a varying color based on the object number (not necessarily unique), unused if oneObjNrOrNegative is >= 0.
oneObjNrOrNegative,oneObjCol,oneObjColBg	give a single object number for setting the values to either oneObjCol or oneObjColBg, or to use the lstColOfObj.

Return values

ERR_TYPE	if src is of unknown type or unsupported
ERR_PARAM	if ch exceeds image src components.

vc_slc_print()

void vc_slc_print	(	U16 *	rlc,
		U16 *	slc,
		I32	indent
	)

This function prints out SLC object numbers parallel to its RLC positions for debugging.

Parameters

rlc	The RLC of the SLC
slc	The SLC to be used
indent	Left indentation used for printing.

vc_slc_print_px()

void vc_slc_print_px	(	U16 *	rlc,
		U16 *	slc,
		I32	indent
	)

This function prints out SLC object numbers per Pixel, so it is only meaningful for debugging small images.

Parameters

rlc	The RLC of the SLC
slc	The SLC to be used
indent	Left indentation used for printing.

rlc2()

U16* rlc2	(	U16 *	rlca,
		U16 *	rlcb,
		U16 *	dest,
		U16 *(*)()	func
	)

The function makes it possible to calculate any operations between two run length codes. rlca and rlcb pass the memory address of both RLCs. The memory address of the resulting RLC is passed by dest. dest must be different from rlca and rlcb. The RLCs to be linked must have the identical format (dx, dy). If this is not the case, then the function returns NULL. Otherwise, the function rlc2() returns the next not yet written memory address for the resulting RLC dest (integer aligned).

For execution, it does not matter if the RLC is labelled or unlabelled. In both cases, the result is an unlabelled RLC. A pointer to the basic function to be executed specifies the nature of the operation. The following macros use this function:

Operation	Call	Basic function
AND	rlcand(a, b, dest)	rlc_andf()
OR	rlcor(a, b, dest)	rlc_orf()
XOR	rlcxor(a, b, dest)	rlc_xorf()
NAND	rlcnand(a, b, dest)	rlc_nandf()
NOR	rlcnor(a, b, dest)	rlc_norf()
EQUIV	rlcequiv(a, b, dest)	rlc_equivf()
AND_NOT	rlcandnot(a, b, dest)	rlc_andnotf()
OR_NOT	rlcornot(a, b, dest)	rlc_ornotf()
NAND_NOT	rlcnandnot(a, b, dest)	rlc_nandnotf()
NOR_NOT	rlcnornot(a, b, dest)	rlc_nornotf()

Of course, you can write your own basic functions. Pass them as function pointer to rlc2().

Parameters

rlca	First RLC Source.
rlcb	Second RLC Source.
dest	RLC Output.
func	RLC Basic Function Pointer (Performs the Actual Operation).

Memory Consumption

None.

Return values

NULL	if rlca and rlcb have different formats.
Address	Pointer past end of output RLC (aligned).

rlc_inv()

U16* rlc_inv

(

U16 *

rlc

)

The function performs the in-place inversion of RLC stored at address rlc in memory (interpretable as logical NOT).

Inversion means, that black segments are changed to white and vice versa. The inversion is obtained by negating the color information at the start of each line. rlc_inv() returns the address of the next item to follow the RLC code (integer aligned).

Parameters

rlc	Source and Destination RLC.

Memory Consumption

None.

Return values

Address

Pointer Past End of Output RLC (Aligned).

rlc_move()

U16* rlc_move	(	U16 *	src,
		U16 *	dst,
		I32	mx,
		I32	my
	)

The function reads RLC line at memory address src, moves all RLC items horizontally by mx pixels (mx negative: move left), vertically by my lines (my negative: move up) and outputs the result to dest. src and dest must be different for this operation. Black space (color=0) is added for the regions outside the original window.

Parameters

src	Pointer to Source RLC.
dst	Pointer to Destination RLC.
mx	x Coordinate of Movement Vector.
my	y Coordinate of Movement Vector.

Memory Consumption

None.

Return values

Address

Pointer Past End of Output RLC (Aligned).

rlc_cutframe()

U16* rlc_cutframe	(	U16 *	src,
		U16 *	dst,
		I32	dxDst,
		I32	dyDst,
		I32	mx,
		I32	my
	)

The function reads RLC line at memory address src, moves all RLC items horizontally by mx pixels (mx negative: move left), vertically by my lines (my negative: move up) and outputs the result to dest. src and dest must be different for this operation. Black space (color=0) is added for the regions outside the original window.

Parameters

src	Pointer to Source RLC.
dst	Pointer to Destination RLC.
dxDst	Horizontal size for destination RLC.
dyDst	Vertical size for destination RLC.
mx	x Coordinate of Movement Vector.
my	y Coordinate of Movement Vector.

Memory Consumption

None.

rlc90()

U16* rlc90	(	U16 *	src,
		U16 *	dst,
		I32	size
	)

Parameters

src	Source RLC Pointer.
dst	Destination RLC Pointer.
size	Maximum Count of Bytes Allowed for dst.

Memory Consumption

(2* dx * dy + 6 * dx + 2) Bytes of Heap Memory.

Return values

Address

Pointer past end of output RLC (aligned).

rlc180()

U16* rlc180	(	U16 *	src,
		U16 *	dst
	)

Parameters

src	Source RLC Pointer.
dst	Destination RLC Pointer.

Memory Consumption

(5* dy) Bytes of Heap Memory.

Return values

Address

Pointer past end of output RLC (aligned).

rlc_mirrorH()

U16* rlc_mirrorH	(	U16 *	src,
		U16 *	dst
	)

do not use in-place

Parameters

src	Source RLC Pointer.
dst	Destination RLC Pointer.

Memory Consumption

(5* dy) Bytes of Heap Memory.

Return values

Address

Pointer past end of output RLC (aligned).

rlc_mirrorV()

U16* rlc_mirrorV	(	U16 *	src,
		U16 *	dst
	)

do not use in-place

Parameters

src	Source RLC Pointer.
dst	Destination RLC Pointer.

Memory Consumption

(5* dy) Bytes of Heap Memory.

Return values

Address

Pointer past end of output RLC (aligned).

rlc_shear_x()

I32 rlc_shear_x	(	U16 *	src,
		U16 *	dst,
		I32	shearDx
	)

This function shears RLC in horizontal direction. Due to the pixel quantization, there may be approximations in the positioning: If the Bresenham Algorithm has due to the shearing factor more than one possible position for one row, the center position will be used, eventually floored against 0. Also formerly connected area parts may disconnect through this operation.

Be sure to have correct colors at the border of the source RLC, since the border values will be the fill color for out-of-image regions!

Parameters

src	Source RLC Pointer.
dst	Destination RLC Pointer, allocated size >= src.
shearDx	Horizontal Pixel Deviation between uppermost and lowermost RLC Line (approx.).

erxdi()

U16* erxdi	(	U16 *	src,
		U16 *	dst,
		U16 *(*)()	fc1,
		U16 *(*)()	fc2
	)

The function erodes/dilates the image by one pixel. Erosion means that all white areas in the RLC become one pixel wider in each direction, while all black areas are narrowed one pixel. Thus, black areas which are 1 or 2 pixels in diameter disappear completely. src is a pointer to the source RLC, dest to the destination RLC. The function pointers passed specify the type of operation being performed. fc1 is the function pointer for the horizontal erosion/dilation process, fc2 is the function pointer for the vertical erosion/dilation process. The following macros call this function:

Operation	Call	Basic function fc1()	Basic function fc2()
Erosion	erode(a, b)	rlc_xero()	rlc_orf()
Dilation	dilate(a, b)	rlc_xdil()	rlc_andf()

Of course, you can write your own horizontal and vertical functions. Pass them as function pointers to erxdi().

Parameters

src	Points to Source RLC.
dst	Points to Destination RLC.
fc1	Points to Function to do the Horizontal Processing.
fc2	Points to Function to do the Vertical Processing.

Memory Consumption

8*(dx+1) Bytes of Heap Memory.

See also

erxdi2().

rlc_mf(), mx(), mn().

Return values

Address

Pointer past End of Output RLC (Aligned).

erxdi2()

U16* erxdi2	(	U16 *	src,
		U16 *	dst,
		U16 *(*)()	fc1,
		U16 *(*)()	fc2
	)

The function erodes/dilates the image by one pixel. It is most similar to the erxdi2() function, but instead of a square as structuring element, it uses a diagonal (diamond-shaped) structuring element. The influence of the structuring element becomes apparent, if the function is called several times on the data of the previos erosion/dilation. A round shaped structuring element can be approximated by alternating the calls of erxdi() and erxdi2(), this procedure will produce an octagonal shaped structuring element which is much closer to a circle. src is the source RLC, dest is the destination RLC. The function pointers passed specify the type of operation being performed. fc1 is the function pointer for the horizontal erosion/dilation, fc2 is the function pointer for the vertical erosion/dilation.

The following macros call this function:

Operation	Call	Basic function fc1()	Basic function fc1()
Erosion	erode2(a, b)	rlc_xero()	rlc_orf()
Dilation	dilate2(a, b)	rlc_xdil()	rlc_andf()

Of course, you can write your own horizontal and vertical functions. Pass them as function pointers to erxdi2().

Parameters

src	Points to Source RLC.
dst	Points to Destination RLC.
fc1	Points to Function to do the Horizontal Processing.
fc2	Points to Function to do the Vertical Processing.

Memory Consumption

4*(dx+1) Bytes of Heap Memory.

See also

erxdi().

rlc_mf(), mx(), mn().

Return values

Address

Pointer past End of Output RLC (Aligned).

rlc_mf()

U16* rlc_mf	(	U16 *	src,
		U16 *	dst,
		I32	col,
		I32	lng
	)

The function performs a horizontal median filtering on run length encoded images.

The median filter purges all structures of color col with length less than lng. The operation will create less data at address dest than the original RLC at address src. Moreover, the operation may be performed in-place, i.e. src and dest may be the same. The function is valuable to reduce the amount of useless information in noisy images in an early stage of RLC processing. The function returns a pointer to the next available memory word (U16) to follow the RLC code (integer aligned).

Parameters

src	Pointer to Source RLC.
dst	Pointer to Destination RLC.
col	Color of Median Purge.
lng	Horizontal Width of Median.

Memory Consumption

None.

See also

erxdi(), erxdi2(), mx(), mn().

Return values

Address

Pointer Past End of Output RLC (Aligned).

rlc_area()

U32 rlc_area	(	U16 *	rlc,
		I32	color
	)

The function calculates the area of all pixels of a given color (black: color = 0, white: color = 0xFFFF) in the unlabelled RLC. All pixels of a given color (black or white) are included. There is no differentiation according to objects. rlc is the start address of the run length code in memory. The return value of this function is the area.

See also

rlc_feature(), rl_area2().

Memory Consumption

none.

Return values

Area	Black or White Pixel Count in RLC.

fread_rlc()

U16* fread_rlc	(	char *	path,
		U16 *	rlc
	)

The function opens a file and reads the RLC of this file to memory at address rlc. The full path of the file is specified by the string path. The function returns a pointer to the next available memory word to follow the RLC code (integer aligned).

Parameters

path	Full File Path to Input File.
rlc	Allocated Destination RLC.

Memory Consumption

None.

See also

fwrite_rlc().

Return values

Address	Pointer Past End of Output RLC (Aligned).
NULL	if File Reading Fails.

fwrite_rlc()

I32 fwrite_rlc	(	char *	path,
		U16 *	rlc
	)

The function creates a file and writes the RLC starting at address rlc to this file. The full path of the file is specified by the string path. If the function is unable to open the specified file, it returns ERR_OPEN, otherwise ERR_NONE.

Parameters

path	Full File Path to Output File.
rlc	Source RLC.

Memory Consumption

None.

See also

fread_rlc().

Return values

ERR_NONE	on Success.
ERR_OPEN	if File Opening Fails.

rlc_label_fast()

U16* rlc_label_fast	(	U16 *	rlc,
		U16 *	rlcEnd,
		U16 *	slc,
		I32	mode
	)

This function is the same as rlc_label() but with an extra argument for the end of the rlc. This allows to get a speed up at least at small enough images.

Refer to the documentation of rlc_label().

Parameters

rlc	Pointer to Unlabelled RLC.
rlcEnd	Pointer to the memory after the content of the rlc, available as return value of most rlc functions.
slc	Pointer to SLC (Object Labels) Output.
mode	Connectivity mode: 0: 4/4 (Standard) 1: 8/8 2: 8/4 3: 4/8

Return values

NULL	on Licence Error.
NULL	if Memory Allocation Fails.
Address	Pointer Past End of Output SLC (Aligned).
NULL	if an Object Overrun occurs.

rlc_label()

U16* rlc_label	(	U16 *	rlc,
		U16 *	slc,
		I32	mode
	)

One of the most important functions for binary images (RLC) is object labelling. Object labelling or connected component labelling means that all connected areas within an image are being clustered together and assigned a unique identifier, the object number. The function labels the run length code stored starting at the memory address rlc. The function will output the object labelling information at memory address slc which must be specified. Enough memory must be available for the memory needs of the SLC (The SLC needs (size_of_rlc - 4) bytes of memory). mode indicates a certain neighborhood connectedness for the segmentation according to the following table:

mode	Connectedness	Macro	Library
0	4/4 (standard)	sgmt(rlc, slc), label44(rlc, slc)	VCLıb
1	8/8	label88(rlc, slc)	ExtLıb
2	8/4	label84(rlc, slc)	ExtLıb
3	4/8	label48(rlc, slc)	ExtLıb

A connectedness of 8/4 means that the white pixels must be 8-connected and the black pixels must be 4-connected to form an object.

Note

Please note that since functions like rlc_qin() might produce nonsensical results when called with RLC data of different connectedness, we recommend using the standard 4/4 connectedness model (macro sgmt(rlc, slc)).

The slc pointer is stored in the run length code at address rlc and rlc+1. This indicates a labelled RLC. The number of objects found and the object numbers for the individual RLC segments are stored in the SLC. The object numbers begin at 0; a total of 32000 object numbers are allowed. An 'object number overrun' occurs if this number is exceeded.

The return value of this function is the next free memory address (integer aligned). The function returns NULL in case of an error. This might be an object number overrun in which case the number of objects field in the SLC is also set to zero.

Parameters

rlc	Pointer to Unlabelled RLC.
slc	Pointer to SLC (Object Labels) Output.
mode	Connectivity mode: 0: 4/4 (Standard) 1: 8/8 2: 8/4 3: 4/8

Memory Consumption

256 kB of Heap Memory (= 8 * 32000).

rlc_cut()

U16* rlc_cut	(	U16 *	src,
		U16 *	dst,
		I32	objnum
	)

The function copies individual connected pixel areas (objects) out of the labelled RLC. src is the labelled source RLC, dst is the unlabelled target RLC. objnum is the number of the object to be copied. All objects copied out (including black ones) are stored white on a black background in the target RLC regardless of their original color. The return value of this function is the address of the next available memory space immediately after the target RLC. The function is aborted and NULL is returned if src is unlabelled or if objnum is larger than the number of objects contained in the RLC.

Parameters

src	Source RLC.
dst	Destination RLC.
objnum	Object Number.

Memory Consumption

None.

Return values

NULL	if RLC is Unlabelled.
NULL	if SLC Object Number is Invalid.
Address	Pointer Past End of Output RLC (Aligned).

rl_area2()

I32 rl_area2	(	U16 *	rlc,
		U32 *	area,
		U32	n
	)

The function calculates the area of all objects in the labelled RLC. rlc is the start address of the labelled RLC in memory. area is an array for the object areas, and n is the maximum number of objects, i.e. usually the dimension of the array. After the function rl_area2() is called, the object areas for all objects (independent of their colors) are available in the array area. The function returns the number of objects in the labelled RLC.

Parameters

rlc	Source RLC.
area	Computed Areas as Array.
n	Maximum Number of Array Entries allowed.

Memory Consumption

None.

See also

rlc_area().

Return values

ERR_SLC	if RLC is Unlabelled.
ERR_RLC_ONOVR	if Object Number overruns.
Object Count	Number of Objects in SLC.

rlc_qin()

I32 rlc_qin	(	U16 *	rlc,
		I32	QIN[],
		U32	n
	)

The function computes the object inclusion property for all objects. It is calculated, which object is contained by which other object. This topological relationship is stored in the array qin[].

If an object touches more than one image boundary, this property cannot be computed for this object. In this case, qin is set to -1 for this object.

Note

Please note that this function might produce nonsensical results when called with RLC data of connectedness other than the standard 4/4 connectedness model (macro sgmt(rlc, slc)).

Parameters

rlc	RLC pointer
QIN	array for QIN values for each object (output) object inclusion relationship -1 indicates that this object touches more than 1 image boundaries. example: QIN[2] = 1 means object 2 is inside object 1
n	size of QIN[]

Memory Consumption

4*nobj*sizeof(int) Bytes of Heap Memory.

See also

rlc_nhls().

Return values

ERR_SLC	if RLC is Unlabelled.
ERR_RLC_ONOVR	if an Object Number Overrun occured.
ERR_SLC_INCON	if SLC object count is inappropriate.
ERR_RLC_MEM	if Memory Allocation Failed.
Object Count	on Success.

rlc_nhls()

I32 rlc_nhls	(	U16 *	rlc,
		U32	holes[],
		U32	n
	)

The function computes the number of holes for all objects in labelled RLC. Please be aware that even very small objects with a few pixels are counted as holes. It is therefore recommended to clean the image with the function rlc_arf() first.

Parameters

rlc	RLC Pointer.
holes	Array for the Number of Holes for Each Object (Output).
n	Size of holes[] Array.

Memory Consumption

(4*nobj+ n)*sizeof(int) Bytes of Heap Memory.

See also

rlc_qin().

Return values

ERR_RLC_MEM	if Memory Allocation Fails.
ERR_SLC	if RLC is Unlabelled.
ERR_RLC_ONOVR	if an Object Number Overrun occured.
ERR_SLC_INCON	if SLC object count is inappropriate.
ERR_RLC_MEM	if Memory Allocation Failed.
Object Count	on Success.

rlc_arf()

I32 rlc_arf	(	U16 *	src,
		U16 *	dst,
		U32	min_area
	)

The function deletes all objects of the source RLC with an area less than min_area. This can be used to drastically reduce the amount of RLC entries and to speed up the following routines operating on RLC. The function is intended to eliminate small objects.

Note, that the output RLC is unlabelled. It might therefore be necessary to call sgmt() again for object labelling. The function returns the number of objects on success or the (negative) standard error code on error.

Parameters

src	Labelled source RLC.
dst	Destination RLC (unlabelled).
min_area	Objects smaller than min_area will be deleted.

Memory Consumption

nobj*sizeof(int) bytes of heap memory.

See also

rlc_mf(), rlc_delete(), rlc_arf2().

Return values

ERR_SLC	if RLC is unlabelled.
ERR_SLC_INCON	if SLC object count is inappropriate.
ERR_RLC_MEM	if Memory Allocation Fails.
Object Count	Count of Objects in original source RLC.

rlc_arf2()

I32 rlc_arf2	(	U16 *	src,
		U16 *	dst,
		I32	col,
		U32	min_area,
		U32	max_area
	)

The function deletes all objects of the source RLC with an area less than min_area and larger than max_area. With col it is possible to select the color for the objects to be deleted. With col != (0, -1), any color is selected for deletion.

The function calls rlc_delete(). Please mind that any restriction for rlc_delete() also applies to rlc_arf2()

Note, that the output RLC is unlabelled. It might therefore be necessary to call sgmt() again for object labelling. The function returns the number of objects on success or the (negative) standard error code on error.

Parameters

src	Labelled source RLC.
dst	Destination RLC (unlabelled).
col	Color of objects to be deleted, 0 = black, -1 = white, any other value: any color
min_area	Objects smaller than min_area will be deleted.
max_area	Objects larger than max_area will be deleted.

Memory Consumption

nobj*sizeof(int) bytes of heap memory.

See also

rlc_mf(), rlc_delete(), rlc_arf().

Return values

ERR_SLC	if RLC is unlabelled.
ERR_SLC_INCON	if SLC object count is inappropriate.
ERR_RLC_MEM	if Memory Allocation Fails.
ERR_RLC_MEM	if Memory Allocation Fails.
Object Count	Count of Objects in original source RLC.

rlc_select()

I32 rlc_select	(	U16 *	rlc,
		U16 *	rlc2,
		I32	selector[],
		U32	n,
		I32	mode
	)

The function is used for the selection of objects in a binary image given by rlc. A second binary image rlc2 is used as a guide image to specify where objects in the first image are selected. Together with the function rlc_delete(), this functionality is sometimes called 'morphological reconstruction'. The function generates an array selector, which is 1 for each object selected and 0 otherwise The format of both RLCs (i.e. the size of the image in x and y) must be identical, otherwise the function returns with ERR_RLCFMT.

Parameters

rlc	Points to Labelled RLC.
rlc2	Points to (Unlabelled) "Selector" RLC.
selector	Output Array with Selection Information for All Objects.
n	Size of selector[], must be >= Number of Objects in the Input RLC.
mode	Selection Mode, Reference for the selection is always rlc2, e.g. in mode=2 all objects in rlc would be selected where the rlc2-(selector) pixels are black, all others are deselected. 0, Standard Mode: Select White Objects. 1: Select White (and All Black) Objects. 2: Select Black Objects. 3: Select Black (and all White) Objects.

Memory Consumption

None.

See also

rlc_delete(), rlc_arf().

Return values

ERR_SLC	if RLC is Unlabelled.
ERR_RLC_ONOVR	if Object Count is 0, or overruns n.
ERR_SLC_INCON	if SLC object count is inappropriate.
ERR_RLCFMT	if RLC dx/y differs from Selector RLC dx/y.
Object Number	Number of Objects.

rlc_select_by_polygon_simple()

I32 rlc_select_by_polygon_simple	(	U16 *	rlc,
		I32 *	xyLst,
		U32	xyCnt,
		I32 *	selector,
		U32	maxSelector
	)

The function is used for the selection of objects in a binary image given by rlc. A interior simple polygon is used as a guide to specify where objects in the image are selected: Everything but the background selects the underlying objects. The function generates an array selector, which is 1 for each object selected and 0 otherwise.

Note

For proper functioning, reassure that all polygon coordinates lie at the image.

Parameters

rlc	Points to Labelled RLC.
selector	Output Array with Selection Information for All Objects, Size of selector[], must be at least the Number of Objects in the Input RLC.
maxSelector	Selector array size.

See also

rlc_select().

Return values

ERR_SLC	if RLC is Unlabelled.
ERR_OVERRUN	if Selector array is too small.
ERR_MEMORY	if allocation fails.
ERR_PARAM	if polygon generation fails.

rlc_delete()

U16* rlc_delete	(	U16 *	src,
		U16 *	dst,
		I32	keep[]
	)

The function deletes objects from an RLC using a selection list. The source RLC must be labelled, whereas the result RLC is unlabelled. Some restrictions apply for the usage: (1) Deleting only one object and keeping all others works fine (2) Deleting strictly objects of one color works fine (3) Deleting objects without holes (internal objects) works fine (4) Deleting smaller objects and keeping larger ones works fine The term "smaller" may be in the sense of "less pixels" or "smaller width" or "smaller height" or any diameter or projection in any direction (5) Deleting ANY objects with ANY color without the above restrictions may lead to inconsistent or unexpected behavior. Unexpected dst RLCs may be produced. It is at the user's responsibility to make sure that one of the above conditions is met. The function does NOT check for it.

Parameters

src	aource RLC.
dst	destination RLC.
keep	selection Array == 0: delete, != 0 : keep.

Memory Consumption

None.

See also

rlc_select(), rlc_arf(), rlc_arf2().

Return values

NULL	if RLC is unlabelled.
NULL	if SLC object count is inappropriate.
Address	Pointer to the next available RLC.

rlc_getobject()

I32 rlc_getobject	(	U16 *	rlc,
		I32	x,
		I32	y
	)

The function is used for the selection of objects in a binary image given by rlc. A coordinate pair (x, y) defines the position where an object in the image should be selected. Together with the function rlc_delete(), this functionality is sometimes called 'morphological reconstruction'. The function returns the (positive) objectnumber of the selected object or a (negative) error code.

Parameters

rlc	Points to Labelled RLC.
x,y	Coordinates of Selection Point.

Return values

object

Object Number (output).

Memory Consumption

None.

See also

rlc_select(), rlc_delete().

Return values

ERR_SLC	if RLC is Unlabelled.
ERR_RLC_ONOVR	if Object Count is 0.
ERR_SLC_INCON	if SLC object count is inappropriate.
ERR_PARAM	if (x, y) not within image.
Object Number	.

rlc_keep_object()

I32 rlc_keep_object	(	U16 *	src,
		U16 *	dst,
		I32	x,
		I32	y
	)

The function is used for the extraction of objects in a binary image given by rlc. A coordinate pair (x, y) defines the position where an object in the image should be extracted. This is sometimes called 'morphological reconstruction' of an object. The extracted object is always white on dark background. rlc_keep_object() internally calls function rlc_getobject() first to get the object number of the relevant object. It then extracts the object from the RLC using function rlc_cut(). The function returns the (positive) objectnumber of the selected object or a (negative) error code.

Function can be called in-place i.e. src and dst can be pointers to the same address.

Parameters

src	Pointer to labelled source RLC.
dst	Pointer to unlabelled destination RLC (output).
x,y	Coordinates of Selection Point.

Return values

object

Object Number (output).

Memory Consumption

None.

See also

rlc_select(), rlc_getobject(), rlc_cut().

rlcmk_seed()

U16* rlcmk_seed	(	image *	src,
		U16 *	seed,
		U16 *	rlc,
		I32	thresh,
		I32	size,
		I32	mode
	)

function outputs RLC for all objects overlapping the seed RLC

Parameters

src	source image
seed	seed RLC, only objects that overlap seed will survive
rlc	destination RLC
thresh	threshold for binarization
size	maximum size of output RLC
mode	the seed mode (see select()) 0: standard mode: select white objects 1: select white (and all black) objects 2: select black objects 3: select black (and all white) objects

Return values

pointer

to next available RLC address, error: NULL

rlcmk_seed2()

U16* rlcmk_seed2	(	image *	src,
		U16 *	seed,
		U16 *	rlc,
		I32	thr1,
		I32	thr2,
		I32	size,
		I32	mode
	)

function outputs RLC for all objects overlapping the seed RLC select pixels between thr1 = lo, thr2 = 150 = high

Parameters

src	source image
seed	seed RLC, only objects that overlap seed will survive
rlc	destination RLC
thr1,thr2	high and low thresholds for binarization
size	maximum size of output RLC
mode	the seed mode (see select()) 0: standard mode: select white objects 1: select white (and all black) objects 2: select black objects 3: select black (and all white) objects

Return values

pointer

to next available RLC address, error: NULL

rlcand_slc()

U16* rlcand_slc	(	U16 *	rlca,
		U16 *	slca,
		U16 *	rlcb,
		U16 *	rlcOut,
		U16 *	slcOut,
		I32 *	newObjNrOrNULL
	)

The function makes it possible to calculate a logical AND operation between two run length codes by preserving the object numbers of the first RLC source rlca. The second RLC, rlcb, is used as guide image, where

• rlcb white regions get the underlying rlca object number, and
• rlcb black regions get the maximum object number, which increases then by 1.

rlcOut must be different from rlca and rlcb. The RLCs to be linked must have the identical format (dx, dy). If this is not the case, then the function returns NULL. Otherwise, the function returns the next not yet written memory address for the resulting RLC dest (integer aligned).

Parameters

rlca	First RLC Source.
slca	First SLC Source or NULL to use the implicit pointer at rlca.
rlcb	Second RLC Source (white keep objects, black writes new objNr).
rlcOut	RLC Output.
slcOut	SLC Output.
newObjNrOrNULL	If set to NULL, the output slc has the same object numbers as the input slc, that means, that there may be object numbers not present anymore; if you set it to an array of objNr size, there will be a renumbering reducing the object number; the new count is stored at the slcOut, and the rlcb black region object gets the number (new count-1); the array can be used to look up the new number by using the old object number as index.

Memory Consumption

None.

Return values

NULL	if rlca and rlcb have different formats.
Address	Pointer past end of output RLC (aligned).

rlc_zoom()

U16* rlc_zoom	(	U16 *	src,
		U16 *	dst,
		I32	magX,
		I32	magY
	)

The function reads RLC line at memory address src, enlarges all RLC items horizontally by factor magX, vertically by magY lines and outputs the result to dest. The function can be used in-place, i.e. src and dst can be identical;

Negative magX or will zoom down.

Parameters

src	Pointer to Source RLC.
dst	Pointer to Destination RLC.
magX	Zoom factor x.
magY	Zoom factor y.

Memory Consumption

None.

Return values

Address

Pointer Past End of Output RLC (Aligned).

rlc_fill()

U16 * rlc_fill	(	U16 *	rlc,
		I32	dx,
		I32	dy,
		I32	color
	)

The function creates an empty test image RLC format using just one color.

Parameters

rlc	RLC Test Image Output.
dx	x Size of RLC.
dy	y Size of RLC.
color	Fill color.

Return values

Address	Pointer past End of Output RLC (Aligned).
Address	Pointer past End of Output RLC (Aligned).

rlc_rect()

I32 rlc_rect	(	U16 *	rlc,
		U16	rlcDx,
		U16	rlcDy,
		I32	rlcMaxBytes,
		U16	x0,
		U16	y0,
		U16	x1,
		U16	y1,
		U16	col
	)

This function generates a RLC image with a rectangle at it.

Return values

-1	x0, x1, y0, y1, out of range rlcDx, rlcDy.
-2	rlcMaxBytes is too low, needs more memory.

Parameters

rlc	Pre-Allocated Source RLC Pointer.
rlcMaxBytes	Allocated Bytes for the RLC Pointer.
x0,y0,x1,y1	Diagonal Rectangle Points, both part of the rectangle.
col	Color of the Rectangle, Background is inverse.

rlc_drawline()

U16* rlc_drawline	(	U16 *	rlc,
		U16	rlcDx,
		U16	rlcDy,
		float	cx,
		float	cy,
		float	b,
		I32	col
	)

This function draws a Bresenham line in normalized floatingpoint form into a new RLC image with size (rlcDx, rlcDy). The line is defined as: . If the line does not intersect the RLC image, the function outputs an empty RLC.

Memory requirement for RLC: sizeof(U16) * (4 + 4*(max(rlcDx,rlcDy) + 1)) at maximum.

The function returns a pointer to the next valid address behind the RLC.

Parameters

rlc	Pre-allocated source RLC pointer (see text).
rlcDx,rlcDy	Dimensions of the RLC generated.
cx,cy,b	Parameters of the line to be drawn.
col	Color of the line, background is inverse.

See also

rlc_drawlinesegment().

rlc_drawlinesegment()

U16* rlc_drawlinesegment	(	U16 *	rlc,
		U16	rlcDx,
		U16	rlcDy,
		I32	x0In,
		I32	y0In,
		I32	x1In,
		I32	y1In,
		I32	col
	)

This function draws a Bresenham line from coordinate (x0In, y0In) to (x1In, y1In) into a new RLC image with size (rlcDx, rlcDy). If the line does not intersect the RLC image, the function outputs an empty RLC.

Memory requirement for RLC: sizeof(U16) * (4 + 4*(max(rlcDx,rlcDy) + 1)) at maximum.

The function returns a pointer to the next valid address behind the RLC.

Parameters

rlc	Pre-allocated source RLC pointer (see text).
rlcDx,rlcDy	Dimensions of the RLC generated.
x0In,y0In,x1In,y1In	End points of the line to be drawn.
col	Color of the line, background is inverse.

See also

rlc_drawline().

Return values

rlc	pointer to next available RLC address (integer aligned).

rlc_draw_polygon()

I32 rlc_draw_polygon	(	U16 *	rlcOut,
		U16	rlcDx,
		U16	rlcDy,
		I32 *	pi32PxLst,
		U32	u32CornerCount,
		I32	col
	)

The function draws a polyline in the image pointed by psImgOut. The line can be drawn normally, or as XOR in the gray image or using dotted or other styles.

The drawing stops at the boundary of the image variable.

The nature of drawing is specified by passing the pointer (* func)() to the drawing function itself. The following macros use this function: draw_polylined(), draw_polylinex().

Parameters

psImgOut	Pointer to Image Variable.
u32CornerCount	Corner Count of the Polyline.
pi32PxLst	List of u32CornerCount Point Coordinates as Pixel List [I32 P1x, I32 P1y, I32 P2x, ...].
col	Contour Color.
func	Drawing Function, eg. dashed_U8().

Return values

ERR_MEMORY	if allocation fails.
1	if a corner lies outside of the image.

rlc_fill_polygons_simple()

I32 rlc_fill_polygons_simple	(	U16 *	rlc,
		U16	rlcDx,
		U16	rlcDy,
		U32	rlcMaxBytes,
		U32	lstCnt,
		I32 *	xyLst,
		U32 *	xyCnt
	)

Return values

ERR_MEMORY	if allocation fails.
ERR_PARAM	if polygon generation fails.
positive	if polygon exceeds image.

rlc_objectaverage()

I32 rlc_objectaverage	(	image *	src,
		U16 *	rlc,
		U32 *	average,
		U32	n
	)

The function works on labelled RLC and calculates the average grey value for each object using the original grey image. The image variable src provides the data for the averaging. The function immediately aborts with error code ERR_FORMAT if the image format (dx, dy) implicitly contained in the run length code does not agree with a->dx and a->dy of the image variable. It returns with ERR_OVERRUN if there is not enough space to store the result in the array average. On success the function returns the (positive) number of objects.

Return values

nobj	No Error.
ERR_FORMAT	Format Error.
ERR_OVERRUN	too many objects for size of output array

Parameters

src	Input Image.
rlc	Pointer to RLC (must be labelled).
average	result array
n	number of array elements for average

Memory Consumption

4*nobj bytes

rlc_objectmaxval()

I32 rlc_objectmaxval	(	U32 *	lstObjMaxVal,
		image *	src,
		U8	ch,
		U16 *	rlc,
		U16 *	slcOrNULL
	)

The function returns the maximum value of a given channel ch as list over the SLC objects.

Parameters

lstObjMaxVal	output, points to pre-allocated array with SLC object number entries.
src	Pointer to Source Image containing the values.
ch	Channel of Source Image used for obtaining the pixel value.
rlc	Labelled Run lenght code for object reference.
slcOrNULL	If set to NULL, the SLC reference at the rlc data is used.

Memory Consumption

None.

Return values

ERR_TYPE	if src is of unknown type or unsupported
ERR_PARAM	if ch exceeds image src components.
ERR_OVERRUN	if src dx/dy is smaller than rlc dx/dy
ERR_SLC	if rlc is unlabelled.
ERR_NONE	on success.

testrlc()

U16* testrlc	(	U16 *	rlc,
		I32	dx,
		I32	dy,
		I32	size
	)

The function creates a test image in RLC format. rlc is the start address of the RLC, where the test image is written to. dx and dy is the horizontal and vertical size of the image. size is the size of the individual chess-board squares in pixel. dy must be a multiple of size, it will be rounded off otherwise. The function returns a pointer to the next available memory word (U16) to follow the RLC code (integer aligned). The function can be used to test functionality and execution timing of RLC functions including object labelling. A test image of size 640×480 with a chess-board square size of 32 pixels needs 10084 words (U16) of RLC, which is a good approximation of the average information amount of a 'real life' image of that format.

Parameters

rlc	RLC Test Image Output.
dx	x Size of RLC.
dy	y Size of RLC.
size	Size of individual Chessboard Tiles.

Memory Consumption

4*(dx+1) Bytes of Heap Memory.

Return values

Address

Pointer past End of Output RLC (Aligned).

chkrlc()

I32 chkrlc

(

U16 *

rlc

)

Problems usually occur with functions which use run length code if the RLC contains errors. For example, even the function rlcout(), which outputs the RLC on the screen, may crash if called with faulty RLC. The functions in the library have been checked for correctness, so problems are not to be expected. If the user, however, develops an own function for RLC processing, it is recommended to check the RLC during the development process. The function chkrlc() may be used for this purpose. The function should not be used for the final program, since - it was not optimized for speed - it outputs debug information via the serial communication link In particular, this function checks the following:

• labelled or unlabelled RLC for labelled RLC the SLC address and the number of objects are printed.
• dx and dy are printed.
• negative RLC values.
• nonincreasing, i.e., constant or decreasing RLC values per line.
• RLC values greater than dx.

For labelled RLC, the following is also checked:

• two identical sequential SLC values.
• SLC values greater than the maximum number of objects.

In case of error, the function returns -1, otherwise 0.

Debug information is printed during execution.

Parameters

rlc	Points to RLC.

Return values

-1	if RLC is not Consistent.
ERR_NONE	on Success.

parse_rlc()

U16* parse_rlc

(

U16 *

rlc

)

The function parses the (unlabelled) RLC specified by pointer rlc and returns the next available memory address (integer aligned) right behind the RLC. Be careful: If the RLC is labelled, please make sure to write NULL to the SLC pointer contained in the RLC before writing to the result address of this function.

Memory Consumption

None.

Return values

Address

Pointer Past End of Output RLC (Aligned).

vc_clc_print()

void vc_clc_print	(	U16 *	rlc,
		U16 *	clc,
		I32	indent
	)

This function prints out CLC information parallel to its RLC positions for debugging.

Parameters

rlc	The RLC of the CLC
clc	The CLC to be used
indent	Left indentation used for printing.

vc_clc_print_px()

void vc_clc_print_px	(	U16 *	rlc,
		U16 *	clc,
		I32	indent
	)

This function prints out CLC color per Pixel, so it is only meaningful for debugging small images.

Parameters

rlc	The RLC of the CLC
clc	The CLC to be used
indent	Left indentation used for printing.

vc_clcmk()

U16* vc_clcmk	(	image *	src,
		I32	thr,
		U16 *	rlc,
		U16 *	clc,
		U16	colCircularMax,
		U16	colBg,
		I32	fastModeIff1,
		I32	rlcMaxBytes
	)

This function generates a so-called color run length code (CLC) from an image. It consists of two outputs:

• the (compatible) RLC at rlc which stores the positions where colors change; color interpretation of the RLC value (0xFFFF as white and 0 as black) becomes senseless,
• the CLC at clc containing
  • either the color value of the color input source src->ccmp1 where values of the guide input source src->st equals or exceeds the threshold thr,
  • or the special color value, colBg, for values lower than the threshold thr, called ´background´.

An example usage is the input of a vector image from the gradient_3x3_thresh() function, using the magnitude (st) as guide input and the direction (ccmp1) as color. The threshold selects the strong enough edges, and their direction is stored as color at the CLC clc. Regions with magnitudes lower than the threshold get the value colBg at the CLC.

Note

Color run length code is only a good choice if the segmentation of the image depends on an additional information, like 'same brightness but different color'

Returns

pointer past last written rlc entry or NULL on error.

Parameters

src	input image data of type IMAGE_VECTOR (st: threshold check, ccmp1: color)
rlc	Result Pointer to Unlabelled RLC Output.
clc	Result Pointer to CLC Output.
colBg	CLC value for magnitude < thr, for example 0xFFFF.
fastModeIff1	In this mode the src input image's ccmp1 channel must already contain the thresholded magnitude information by having assigned colBg at those pixels (set colBg appropriate!), where the magnitude at the st channel is smaller than the threshold thr; information at st is ignored.
rlcMaxBytes	Allocated size of rlc and clc.

Return values

NULL	if src is not of IMAGE_VECTOR
NULL	on ERR_MEMORY wrt. rlcMaxBytes

vc_clc_label()

U16* vc_clc_label	(	U16 *	rlc,
		U16 *	rlcEnd,
		U16 *	clc,
		U16 *	slc,
		I32	mode
	)

Parameters

rlc	Pointer to Unlabelled RLC.
rlcEnd	Pointer to first position after Unlabelled RLC (returned by most RLC functions, for example vc_clcmk()).
clc	Pointer to CLC.
slc	Pointer to SLC (Object Labels) Output.
mode	Connectivity mode: 0: 4/4 (Standard)

Return values

NULL	if allocation fails.
NULL	if there are too much objects.

Return values

NULL	on Licence Error.
NULL	if Memory Allocation Fails.
Address	Pointer Past End of Output SLC (Aligned).
NULL	if an Object Overrun occurs.

vc_cyclic_colrange()

I32 vc_cyclic_colrange	(	U16 *	colRangeLen,
		U16 *	colRangeSt,
		U8 *	wrapsIff1,
		U16	objRef,
		U16 *	colOfObj,
		I32	colCircularMax,
		I32	colBg,
		U32 *	eqv_tbl,
		U16	objCnt
	)

This function gets the color range from objects where eqv_tbl[objRef] == eqv_tbl[obj]. The colors are at the colOfObj table (not over eqv_tbl, so for example colOfObj[objRef]). colCircularMax is the end value, for example 256 or 128 where the color wraps. colRangeLen is then the result value of the 'color angle' and colRangeSt the first color; wrapsIff1 is set to 1 if the circular maximum is overstepped by the range, e.g. 126 127 0 1 2 -> range 4, st 126, wraps

Parameters

colRangeLen,colRangeSt,wrapsIff1	Color Range output.
objRef,eqv_tbl	Reference ObjectNr for testing equality over eqv_tbl with each object: eqv_tbl[objRef] == eqv_tbl[obj]
colOfObj	Color of each object, referenced over the object number.
colCircularMax	Maximum color not part of the color cycle anymore.
colBg	If color of object is this color, it is ignored for the range acquisition: 'background color'.
objCnt	Number of objects.

vc_clc_merge_objs_by_colTol()

I32 vc_clc_merge_objs_by_colTol	(	U16 *	rlcOut,
		U16 *	clcOut,
		U16 *	slcOut,
		U16 *	rlc,
		U16 *	clc,
		U16 *	slc,
		I32	maxColTol,
		I32	mergedMaxColTol
	)

This function merges objects of the labelled CLC if their color is nearly similar. This similarity test is local, meaning, objects with color 1,2,3 are merged to one object also if the maxColTol is set to 1. If mergedMaxColTol > 0, the total area of the objects with colors to be merged is tested against it, and if is out of range, the color of the merged object is set to colBg.

Parameters

rlcOut,clcOut,slcOut	Result output.
rlc,clc,slc	Input RLC/CLC/SLC.
maxColTol	Maximum local color tolerance to be merged.
mergedMaxColTol	If greater than zero and area oversteps, the background color of the CLC is assigned to the merged object.

vc_clc_remove_objs_by_area()

I32 vc_clc_remove_objs_by_area	(	U16 *	rlcOut,
		U16 *	clcOut,
		U16 *	slcOut,
		U16 *	rlc,
		U16 *	clc,
		U16 *	slc,
		I32	minArea
	)

This function melds all objects smaller than the given area with a random neighbour which must be greater than the area; so if there is not even one neighbour of such kind, the smaller area object is still present afterwards.

Parameters

rlcOut,clcOut,slcOut	Result output.
rlc,clc,slc	Input RLC/CLC/SLC.
minArea	Minimum area to be kept.

vc_clc_to_rgb()

I32 vc_clc_to_rgb	(	image *	imgRgb,
		U16 *	rlc,
		U16 *	clc
	)

This function writes the CLC image defined by image variable rlc and clc to a RGB image. The color represents its clc value by going from its minimum clc value to its maximum: Red -> Orange -> Yellow -> Green -> Cyan -> Blue -> Violet -> Pink. The pixel is turned black if a background pixel is detected (colBg=*(clc+3)).

Parameters

imgRgb	The preallocated Destination Image.
rlc,clc	Source Image Pointer.

Memory Consumption

None.

See also

fwrite_image_clc().

fwrite_image_clc()

I32 fwrite_image_clc	(	char *	path,
		U16 *	rlc,
		U16 *	clc
	)

This function writes the CLC image defined by image variable rlc and clc as a color bitmap file (BMP) to the file specified by path. The color represents its clc value by going from its minimum clc value to its maximum: Red -> Orange -> Yellow -> Green -> Cyan -> Blue -> Violet -> Pink. The pixel is turned black if a background pixel is detected (colBg=*(clc+3)).

The image is stored in 24 Bit true-color mode.

Parameters

path	The Destination File.
rlc,clc	Source Image Pointer.

Memory Consumption

None.

See also

fwrite_image().

Return values

ERR_MEMORY

on memory allocation failure.

Returns

any error of the fwrite_image() function.

mask_polygon()

I32 mask_polygon	(	image *	psImgIn,
		image *	psImgOut,
		U8	color,
		U32	u32CornerCount,
		I32 *	pi32PxLst,
		U8	u8OutputSizeToSelectionIff1
	)

The function fills all but a polygon shaped image region. The polygon contour, especially the points provided, are not part of the mask being set to the given color color, the inner of the polygon remains untouched. The function can be used to restrict one of the functions from the group 'Multiple Pixels to Values Mappings' to only a part of the image e.g., histogram of a polygon shaped area.

Parameters

psImgIn	The Source Image of Type IMAGE_GREY.
psImgOut	The Destination Image (may be equal to psImgIn).
color	The Fill Color.
u32CornerCount	Count of Corners of the Polygon.
pi32PxLst	List of u32CornerCount Point Coordinates as Pixel List [I32 p1x, I32 p1y, I32 p2x, ...].
u8OutputSizeToSelectionIff1	recalculates psImgOut->dx, psImgOut->dy to fit the selection, use a psImgIn sized allocation for the psImgOut target!

Return values

ERR_PARAM	if (u32CornerCount < 3)
ERR_NONE	on Success.
ERR_RLCFMT	if Internal RLC Generation fails.
ERR_SLC	if Internal SLC Generation fails.
ERR_PARAM	if given Polygon is not OK, e.g., Self Overlapping, Crossing Image Border.
ERR_INCONS	if rlc_mask_image() fails.
ERR_RLCFMT	if rl_ftr2() fails.
ERR_BOUNDS	if a Point lies Outside of an Image.
ERR_SINGULAR	if Singular or Self Intersecting.
ERR_MEMORY	if Memory Allocation fails.
