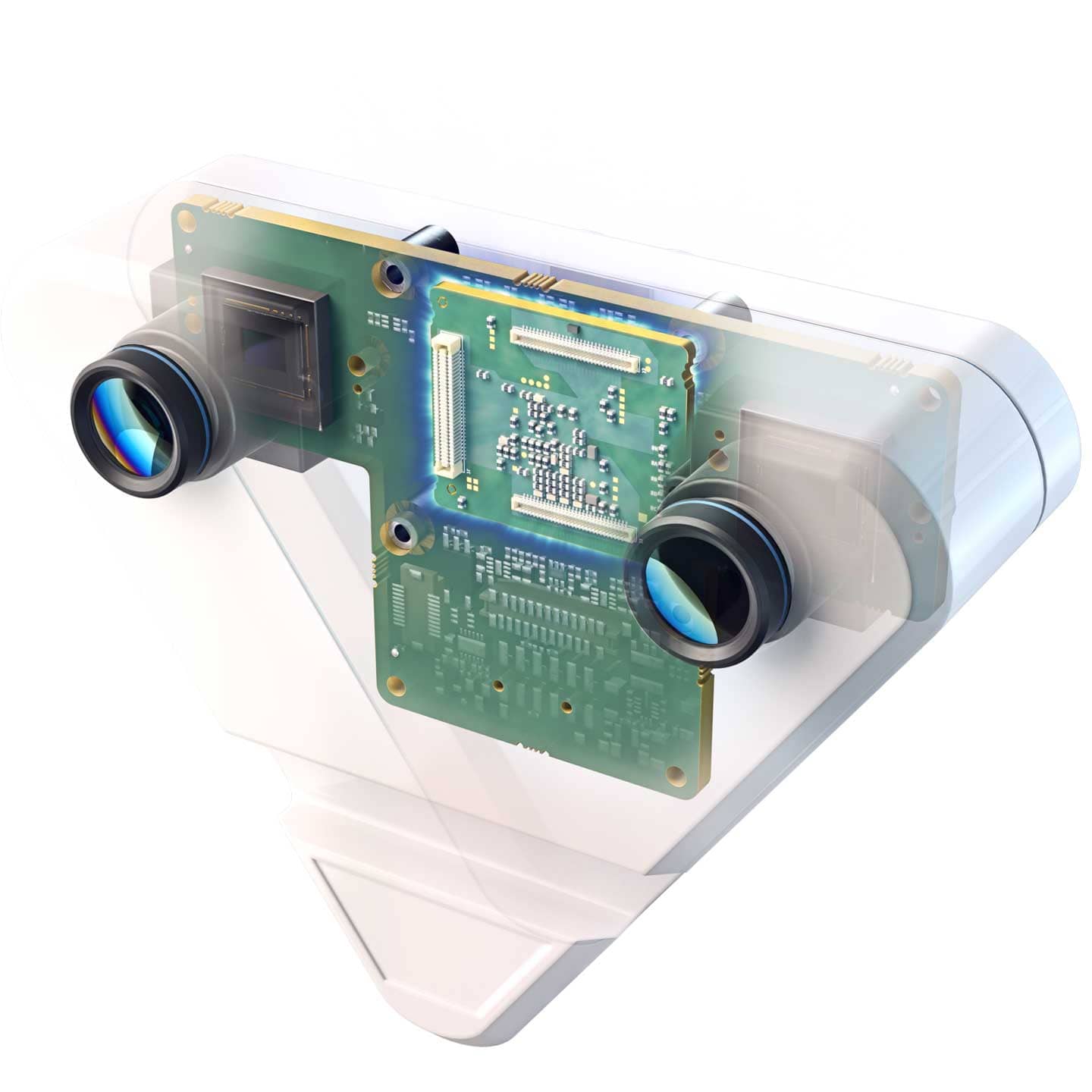

VC Stereo Cam:
Dual Camera System
with Onboard Data Processing
The flexible embedded vision system for two-camera applications
VC Stereo Cam was developed as an embedded vision system for 3D and two-camera applications. It can be flexibly configured for a wide range of OEM projects and is based on the powerful image processing module VC Power SoM.
The VC Stereo Cam image processing module with an onboard FPGA preprocesses large data volumes in real time and transfers the results in the MIPI data stream to a higher-level CPU. This allows users the free choice of their processor platform.
The FPGA is open for customer programming.
- Ultra-compact embedded stereo camera system
- VC MIPI® Camera Modules & VC Power SoM FPGA accelerator perfectly integrated
- Flexible customizable OEM module
- Powerful FPGA: 120,000 logic cells
- IP cores for data fusion, disparity matching, 3D point clouds, etc
- For stereo applications such as people counting, volume determinations, etc
Pre-designed FPGA designs
Our extensive groundwork for stereo image processing with synchronized triggering and optional disparity matching saves users a lot of development effort. We also support project development, offering ready-made FPGA designs for applications like object recognition and specific tasks like 3D point cloud generation. The FPGA with its 120,000 logic cells handles even complex calculations in real time. As a result, sophisticated 3D applications such as exact people counting and volume determinations are possible.
Free choice of VC MIPI® camera modules
Customers can freely select the VC MIPI® camera modules. The prototype VC Stereo Cam for 3D vision integrates two Sony Pregius IMX296 global shutter image sensors.
Alternatively, it is also possible to integrate different sensors, for example for day/night shots or for parallel shots in color and monochrome or in the visible and SWIR spectrum.
Would you like to develop a two-camera system based on VC Stereo Cam?
