World's first!
Quick & easy to your Vision Sensor with
VC picoSmart

Revolution for vision sensor design: The smallest embedded vision system, with all components on a single board

VC picoSmart camera module front view

How VC picoSmart revolutionizes the design of your vision sensors

Small board - entire system...
All components for image acquisition and processing onboard...

...for quick and easy designs...

Choose optics, lighting, interface board, HMI, enclosure etc...
...and your individual vision sensor!

Fast to market, perfectly tailored to your application, compact and cost-effective!

Faster time to market with highly efficient and ultra-compact vision sensors!

Created with Sketch. Created with Sketch.

Greatest performance, smallest design

VC picoSmart is a complete embedded vision system, hardly bigger than a standard image sensor module. It opens up completely new possibilities for the development of application-specific and cost-effective vision sensors in ultra-compact design and in a very short time.

Created with Sketch. Created with Sketch.

All inclusive!

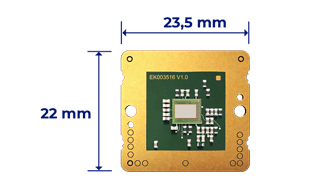

On the tiny board, only 22 mm x 23.5 mm in size, the 1 MegaPixel CMOS sensor with global shutter is accommodated as well as all components for image processing: An FPGA module, a high-end FPU processor with real-time OS, memory and an FPC connector for easy connection to an interface board.

Created with Sketch. Created with Sketch.

Real-time image processing!

The VCRT operating system enables real-time image processing tasks, for example for object recognition, position control, barcode reading, web edge and fill level control.

Created with Sketch. Created with Sketch.

OEM module for industry

VC picoSmart is available immediately as an OEM module and, like all VC products, has long-term availability and is optimized for industrial use.

A complete embedded vision system that fits between two fingers

Quick facts

  • Only 22 mm x 23.5 mm
  • Fully integrated onboard: FPGA module, high-end FPU processor, memory, FPC connector
  • 1 MP global shutter sensor
  • VC Realtime-OS for real-time image processing

Ideal for

  • Object recognition
  • Position control
  • Barcode reading
  • Web edge and level control
  • etc.

VC picoSmart 3D:
Even faster to your
3D Profile Sensor

The world’s smallest embedded vision system, combined with our proven line laser module: VC picoSmart 3D is the ideal basis for fast and cost-effective development of individual OEM 3D sensors. Available completely ready for use or as an individual kit.
Sven Klette-Matzat - Sales Manager - OEM Solutions - Vision Components

Are you looking for the perfect basis for the development of your OEM vision sensor?

VC picoSmart will certainly meet your requirements.
