Laser Profiler (2D/3D)
VC nano 3D-Z
with onboard data processing
3D Laser Profiler
for triangulation applications with blue high power laser

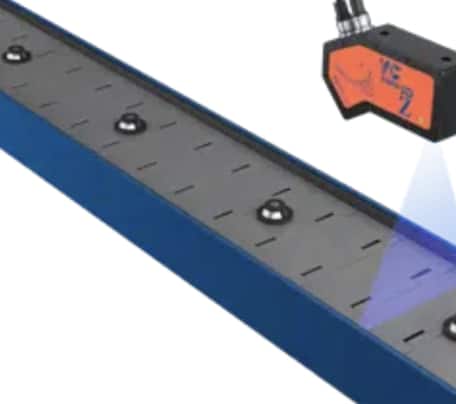

Laser profilers measure height, width, thickness and angles using laser triangulation. The VC nano 3D-Z product series comprises industrial-grade 2D/3D laser profile sensors with direct onboard data processing. The laser scanners are available in a robust protective housing or as modular components.
Laser profilers measure height, width, thickness and angles using laser triangulation. The VC nano 3D-Z product series comprises industrial-grade 2D/3D laser profile sensors with direct onboard data processing. The laser scanners are available in a robust protective housing or as modular components.
Specially designed for OEM applications
Thanks to IP67 also for harsh environments
With visible
blue laser
blue laser
Insensitive to ambient light
Quick and easy integration
e.g. for measuring angles when bending sheet metal

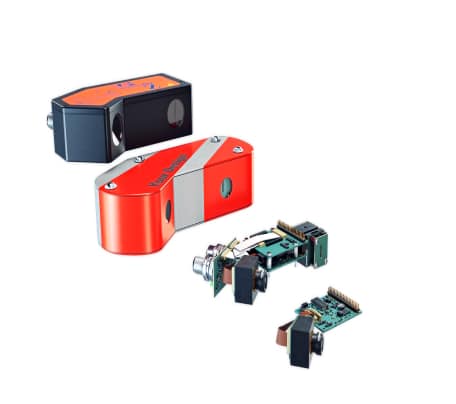

Also available as a kit or components
Choose the right expansion stage
Laser Scanners for 2D/3D profile measurements and industrial applications
For numerous industrial applications, our laser profilers can record data and transfer the triangulation result directly to a central controller – an external PC is not required. Powerful FPGAs in combination with a dual-core ARM processor, which can be used for the specific application tasks, provide the necessary computing power.
The VC nano 3D-Z can not only evaluate the scanned 3D profiles, but also the 2D grey scale image, e.g. to detect defects in the surface. This makes the profile sensors suitable for a wide range of applications and at the same time impresses with a favourable price-performance ratio.
Alternatively, the 3D point clouds and image data captured by the nano 3D-Z can also be analysed on an external PC and with existing applications.
For numerous industrial applications, our profile sensors can record data and transfer the triangulation result directly to a central controller - an external PC is not required. Powerful FPGAs in combination with a dual-core ARM processor, which can be used for the specific application tasks, provide the necessary computing power.
The VC nano 3D-Z can not only evaluate the scanned 3D profiles, but also the 2D grey scale image, e.g. to detect defects in the surface. This makes the profile sensors suitable for a wide range of applications and at the same time impresses with a favourable price-performance ratio. Alternatively, the 3D point clouds and image data captured by the nano 3D-Z can also be analysed on an external PC and with existing applications.
- Laser: class 2, wavelength 450nm, 130mW, blue laser line
- Ideal for metal, foiled and bright materials
- Insensitive to ambient light up to 100,000 Lux
- Large measuring ranges: Working distances from 55mm to 3,270mm
- Laser: class 2, wavelength 450nm, 130mW, blue laser line
- Ideal for metal, foiled and bright materials
- Insensitive to ambient light up to 100,000 Lux
- Large measuring ranges: Working distances from 55mm to 3,270mm
The right Laser Profiler for every measuring range
The laser profilers are available in different sizes for optimum adaptation to different measuring ranges and working distances. Other models, including customised models, are available on request
VC nano 3D-Z regular
VC nano 3D-Z large
VC nano 3D-Z x-large
VC nano 3D-Z xx-large
Are you looking for a customised
2D/3D Laser Profiler or
Laser Triangulation Sensor?
As an OEM partner, we also develop and produce customised solutions,
perfectly adapted to your requirements.
perfectly adapted to your requirements.
Technologies for reliable 2D/3D measurement results
Advanced Temperature Stability Technology
The laser profilers feature our specially developed Advanced Temperature Stability Technology (ATS). It improves temperature stability, using high-performance materials for the components.
Ambient Light Suppression Technology
The ‘Ambient Light Suppression Technology’ (ALST) developed by us makes the blue laser line of the VC nano 3D-Z always visible. Measurements with the profile sensors are possible even in ambient light levels of up to 100,000 lux. The high insensitivity to ambient light is based on the combination of an extremely powerful laser and very short shutter speeds.

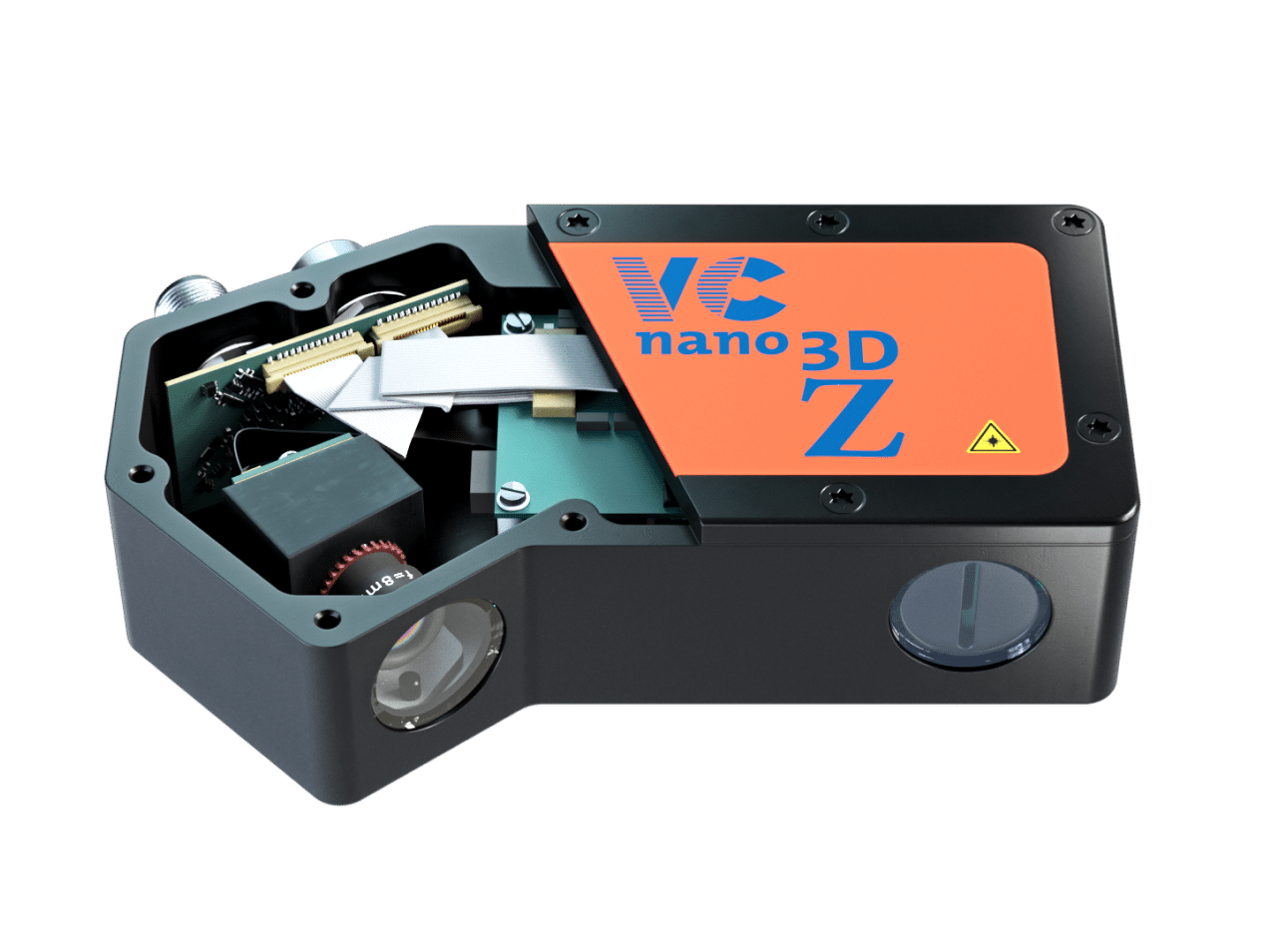

Flexible OEM Laser Profile Sensors:
Flexible OEM Laser Profile Sensors:

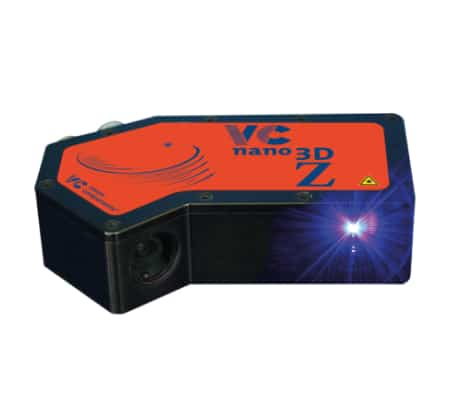

VC nano 3D-Z
VC nano 3D-Z
Ready-to-use, individual design, proven electronics or flexible board camera: The laser profile sensor VC nano 3D-Z with modular design is the optimal solution for your OEM application!
Webinar: Flexible and cost-effective integration of OEM laser profile sensors
Learn more about VC laser profile sensors and their advantages for sheet metal bending and other industrial applications!
Application examples for 2D and 3D laser triangulation
The VC nano 3D-Z profile sensors are suitable for profile and dimension measurement (width, thickness, height, angle) as well as for numerous other applications in industry and robotics, from volume measurement in food processing to weld seam control and quality assurance
Application report:

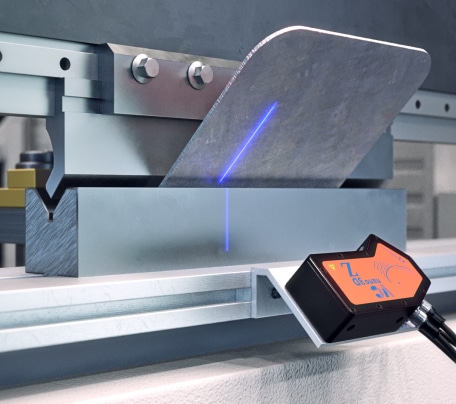

Angle measurement in sheet metal bending
- Autonomous OEM inspection systems for press brakes
- Integrated with Placke bending machines and controllers from leading manufacturers
robot guidance
- High-precision positioning of weld seam and adhesive beads
- Tracking of gaps, lap joints, fillet welds etc.
- Effects such as warping or material and position tolerances are automatically adjusted
Volume measurement
- Volume measurement for food portioning
- Verifying specific weight
- Sorting for quality classification
3D Scan
- Automated handling of production parts
- 3D scan supports production processes by identifying parts and their correct positioning
- Parcel scanning in logistics
Weld seam inspection
- Position and width measurement
- Defect detection: Defect pictures, i.e. pores/pin holes, arches, dents
- Parallel processing of 2D + 3D measurement
Laser Profilers for industrial use
Find the right 3D laser profiler for your project!
Further offers
The world’s smallest embedded vision system, combined with our proven line laser module: VC picoSmart 3D is the ideal basis for fast and cost-effective development of individual OEM 3D sensors. Available completely ready for use or as an individual kit.
Frequently Asked Questions about Laser Profilers (2D/3D)
Do you have further questions?
What is a Laser Profiler?
What is a Laser Profiler?
A laser profiler is a measuring device that is used to record and analyze height profiles and surface structures of objects. It enables detailed, usually non-contact measurement of the shape, height, width and other geometries of an object. 2D/3D profile sensors are also known as laser profile sensors, laser triangulation sensors or laser scanners.
How do Laser Profilers work?
How do Laser Profilers work?
Laser Profilers use laser triangulation and cameras to capture the height profile of an object: a laser beam is projected onto the surface of an object and a camera captures the reflected points of light. The position of these points in the camera, depending on the angle, gives the height of the point on the surface.
What are 2D/3D Laser Profilers used for?
What are 2D/3D Laser Profilers used for?
Laser Profilers are often used in industrial areas such as quality assurance, mechanical engineering and production technology. Examples include angle measurement in metal processing , robot guidance or portioning in the food industry.
